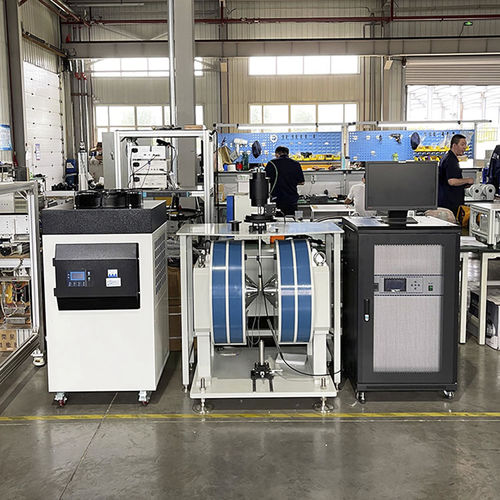

Vibrating sample magnetometer DXV-220

digital

The DXV-220 Vibrating Magnetometer VSM Equipment is an instrument used to measure the magnetism of materials. It vibrates the material and uses the Lorentz force to quickly measure the magnetic field of the material. DX-220V VSM equipment can measure the basic magnetic properties of magnetic materials (such as magnetization curve, hysteresis loop, demagnetization curve), and obtain corresponding various magnetic parameters (such as saturation magnetization, residual magnetization, coercive force, maximum magnetic energy product, magnetic permeability) Rate (including initial permeability, etc.), which can measure magnetic materials such as powder, granules, flakes, and blocks. Main Specifications of DX-220V VSM Equipment 1. Measuring magnetic moment range (when the magnetic pole pitch is 40mm): 10-3emu—300emu (sensitivity: 5×10-5emu); 2. Relative accuracy (when measuring range is 3emu): better than ±1%; 3. Repeatability (when measuring range is 3emu): better than ±1%; 4. Stability (when the range is 3emu): better than 1% for 4 hours of continuous work; 5. The magnetic pole pitch is fixed at 40mm, and the pole face diameter is 60mm; 6. Magnetic field strength: the maximum magnetic field strength is 2.0T. The composition of the DXV-220 vibrating magnetometer 1. DXSG-220 type electromagnet; 2. Magnetic moment measurement unit host (including scanning power supply, lock-in amplifier, Tesla meter, vibration source); 3. Vibrating head, vibrating rod, detection coil; 4. Lenovo brand computers; 5. HP printer. Main instrument description of equipment for VSM measurements
