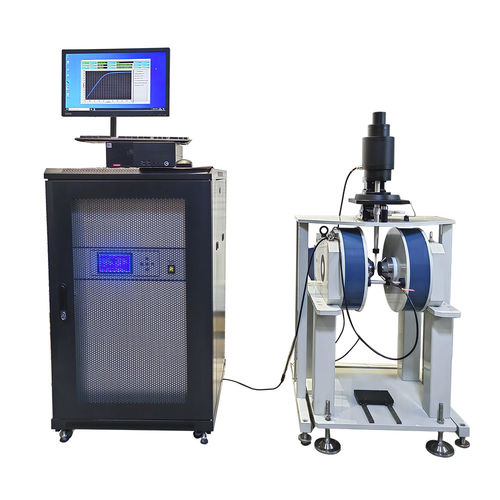

Vibrating sample magnetometer DXV-100

magnetization curve

DXV-100 laboratory VSM Vibrating Sample Magnetometer can be used for material research and development, quality control and product testing, to complete the measurement and analysis of the basic magnetic properties of magnetic materials. VSM Vibrating Sampling Magnetometer can measure the basic magnetic properties of magnetic materials (such as magnetization curve, hysteresis loop, demagnetization curve), and obtain corresponding various magnetic parameters (such as saturation magnetization, residual magnetization, coercive force, maximum magnetic energy product, magnetic permeability) Rate (including initial permeability, etc.), which can measure magnetic materials such as powder, granules, flakes, and blocks. Main Specifications of DXV-100 laboratory VSM 1. Measuring magnetic moment range (when the magnetic pole pitch is 40mm): 10-3emu—300emu (sensitivity: 5×10-5emu); 2. Relative accuracy (when measuring range is 3emu): better than ±1%; 3. Repeatability (when measuring range is 3emu): better than ±1%; 4. Stability (when the range is 3emu): better than 1% for 4 hours of continuous work; 5. The magnetic pole pitch is fixed at 40mm, and the pole face diameter is 60mm; 6. Magnetic field strength: Electromagnet provides between 0-0.8T (sensitivity 0.1mT). The composition of DXV-100 Vibrating Sample Magnetometer 1. DXSG-100 type electromagnet; 2. DX-2K steady current power supply; 3. Vibrating head, vibration rack, sample chamber, detection coil; 4. Magnetic moment measurement unit (including lock-in amplifier, Tesla meter, vibration source); 5. Lenovo brand computers; 6. HP printer; 7. Measurement software.
