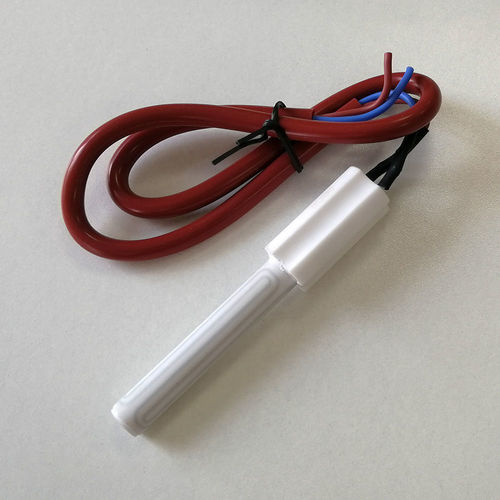

Fuel oil igniter AG90105GDT

ceramicfor burnerssolid fuel

Description
INNOVACERA® alumina ceramic hot-surface igniter AG90105GDT delivers efficient, low-energy ignition for pellet stoves and small biomass burners. The element reaches a steady-state temperature of 800–1100 °C, enabling reliable ignition within approximately 60–90 seconds. The compact tube design and detachable holder make installation, replacement and retrofitting straightforward in industrial and commercial heating applications.

Specification:
Voltage: 120 V / 230 V
Power options: 160 W, 180 W, 210 W, 225 W, 230 W, 240 W, 255 W
Tube size: OD10.5 × ID6.5 × L90 mm
Supporting socket options: NO.4 / NO.5 / NO.6 / NO.29
Lead wire lengths: 300 mm / 400 mm / 500 mm / 900 mm (customizable)
Operating temperature range: 800–1100 °C

Ceramic igniter technology benefits:

• Consumes a fraction of the energy compared with conventional cartridge or element heaters.
• Long service life and resistance to aging.
• Typical ignition time: 60–90 seconds.
• Tested to 100,000 cycles for durability.
• Easy to install, replace and retrofit into existing burners.
• Stable steady-state temperature in the 800–1100 °C range.
• Resistant to oxidation and corrosion.
• Capable of igniting kerosene, wood pellets, wood chips, split logs, coal briquettes and other biomass (e.g., corn).

Applications:

• Kerosene fan heaters
• Wood pellet stoves and boilers
• Small-scale biomass industrial furnace ignition
• Incense burners and similar combustion devices

Technical characteristics / specifications:

• Brand: INNOVACERA®
• SKU: AG90105GDT
• Category: Ceramic heater / hot-surface igniter
• Series: AG90105GDT
• Tube size: OD10.5 × ID6.5 × L90 mm
• Recommended voltages: 120 V, 230 V
• Available power ratings: 160 W; 180 W; 210 W; 225 W; 230 W; 240 W; 255 W
• Steady-state temperature: 800–1100 °C
• Supporting sockets: NO.4, NO.5, NO.6, NO.29
• Lead wire options: 300 mm, 400 mm, 500 mm, 900 mm (customizable)
• Typical ignition time: approx. 60–90 seconds
• Test cycle rating: up to 100,000 cycles
• Displayed price range: $30.00 – $36.00
