Fuel oil igniter INC-H6

biomasssolid fuelfor pellet boilers

Product Overview

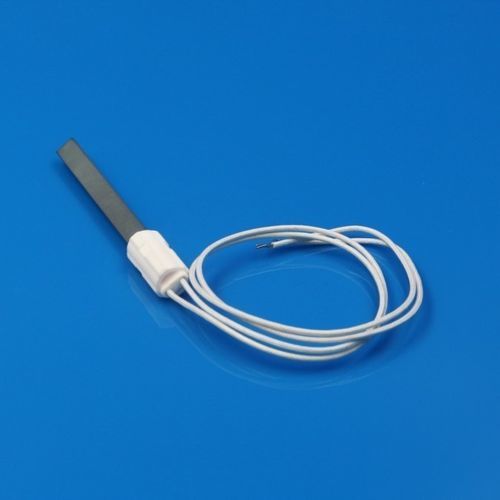

Silicon nitride quartz igniter INC-H6 is an advanced ignition element manufactured from silicon nitride ceramic. It leverages high mechanical strength, thermal conductivity and temperature resistance to deliver fast, reliable heating: it typically reaches 800–1,000°C within tens of seconds and can exceed 1,000°C under rated power. The device ignites fuel by direct surface heating or by thermal convection and is designed for industrial heating and ignition applications such as pellet grills, biomass boilers and BBQ systems.

Key Technical Details
The INC-H6 is fabricated from silicon nitride ceramic and rated for 230V / 300W operation. It achieves rapid temperature rise (≈1000°C within 10–30 s) and a maximum working range of 1100–1200°C. The design provides high power density for improved thermal efficiency, while maintaining excellent electrical insulation, oxidation resistance and chemical corrosion resistance. It is suitable for operation in vacuum conditions and tolerant of direct contact with water, kerosene and similar media when properly integrated.

Specification
Model | Material | Voltage / Power | Size | Ceramic Socket (Ceramic) | Ceramic Socket (Metal Kit) | Wire
INC-H6 | Silicon Nitride | 230V 300W | 90 × 10.8 × 3.9 mm | OD17.5 × 32 | – | 300-500 mm (length and type can be customized)

Core Advantage

• Resistant to ash contact: does not short-circuit on ash or clamp contact
• Improved mechanical shock resistance: reduced breakage in vibrating environments
• High temperature tolerance: supports continuous combustion of granular fuels
• Fast ignition: black quartz element reaches >1000°C in seconds
• Lower maintenance: reduced frequency of cleaning and replacement

Applications

• Ignition for pellet grills and BBQ charcoals
• Biomass boiler and straw incinerator ignition
• Gas and liquid fuel ignition (e.g., natural gas)
• Industrial and laboratory gas heating (air, process gases)
• Exhaust and waste gas treatment systems
• Fireworks and pyrotechnic ignition generators
• Soldering and high-temperature joining equipment
• Heaters for corrosive atmospheres
• Custom heating elements and systems for laboratories
• Mould and tool heating

Technical Specifications

• Model: INC-H6
• Material: Silicon Nitride
• Voltage: 230V
• Power: 300W
• Size: 90 × 10.8 × 3.9 mm
• Ceramic Socket (Ceramic): OD17.5 × 32
• Ceramic Socket (Metal Kit): –
• Wire: 300–500 mm (customizable length/type)
• Temperature performance: reaches ≈1000°C within 10–30 s; maximum 1100–1200°C
• High power density for enhanced thermal efficiency
• Excellent electrical insulation, oxidation and chemical corrosion resistance
• Compatible with vacuum operation and direct exposure to water, kerosene and similar media when properly installed
• Typical uses: pellet grills, biomass boilers, BBQ grills, gas burners, waste gas treatment, laboratory heating elements, heaters for corrosive environments
