Fuel oil igniter

ceramicgasmobile

Product overview

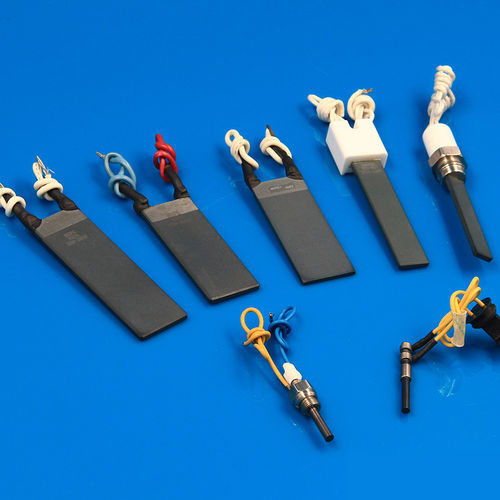

Silicon nitride ceramic hot surface igniter designed for reliable ignition of gas and fuel-oil equipment. Suitable for household, commercial, automotive and industrial applications with wide voltage and power coverage.

Introduction to Silicon Nitride Ceramic Hot Surface Igniter

• No gas leakage or deflagration: Ignition occurs only after the element reaches the required temperature and combustible mixture is introduced, minimizing timing-related leakage and deflagration risks.
• Fully adaptable: High-power hot-surface ignition adapts to variations in gas type, composition, air–fuel ratio, ambient temperature, humidity and contamination.
• Reliable system operation: Low electromagnetic interference, silent operation and consistent ignition timing remove the need for manual ignition confirmation and reduce interference with other electrical equipment.

Features of Silicon Nitride Igniter

• Eliminates limitations of metal heating wires (reduced high-temperature capacity, short service life) and drawbacks of silicon carbide elements (brittleness, fragility, need for water protection).
• Silicon nitride offers high maximum operating temperature, fast heating, compact robust construction and long service life.
• MEIGONG silicon nitride igniters incorporate core intellectual property and multiple invention patents for ceramic heating elements.
• Wide product coverage: working voltage range 4–240 V and power range typically 10–300 W (product family); applicable to ignition and heating of gas and fuel-oil equipment across sectors.

Classification of igniters by power

• Small combustion equipment: Series CQ, MM — Operating voltage 6–24 V — Nominal power 50–95 W — Examples: household stoves, fireplaces, wall-mounted water heaters, car glow plugs.
• Medium-sized combustion equipment: TK Series — Operating voltage 18–230 V — Nominal power 20–400 W — Examples: commercial stoves, mobile heaters, vehicles.
• Large-scale combustion equipment: DG Series — Operating voltage 220–230 V — Nominal power 400–1000 W — Examples: gas air conditioners, clothes dryers, boilers, volumetric water heaters.

Applications

• Ignition and heating for gas and fuel-oil equipment across household, commercial, automotive and industrial sectors.
• Available variants for different voltages and power levels support diverse equipment sizes and installation requirements.

Characteristics / Technical specifications

• Material: silicon nitride ceramic heating element.
• Operating voltage range: 4–240 V (product family coverage).
• Power range: typically 10–300 W; up to 1000 W for large DG series.
• Available series/models: CQ, MM (small); TK (medium); DG (large).
• Key advantages: high maximum working temperature, rapid heating, compact robust construction, long service life, no electromagnetic interference, quiet operation, reliable ignition timing.
• Design & IP: MEIGONG holds core intellectual property rights and multiple patents for silicon nitride ceramic heating elements.
• Typical applications: household stoves, fireplaces, water heaters, car glow plugs, commercial stoves, mobile heaters, boilers, gas air conditioners, clothes dryers, volumetric water heaters, solar and other specialized ignition/heating uses.
• Voltage & power options summary: small 6–24 V / 50–95 W; medium 18–230 V / 20–400 W; large 220–230 V / 400–1000 W.
