Steel conveyor chain

linkfor the mining industrycorrosion-resistant

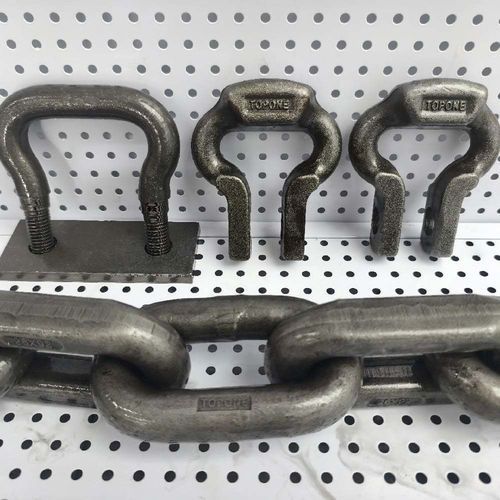

Product Overview Galvanized mining round link chain is a round-link chain manufactured from alloy steel and hot-dip galvanized for enhanced corrosion resistance. It is engineered for mining and heavy material handling where strength, wear resistance and extended service life are required.

Introduction The galvanized mining chain is intended for bulk material handling, conveyors and lifting in mining environments including underground and open-pit operations. The hot-dip galvanization provides protection in humid, chemically aggressive or abrasive conditions, helping to extend component life and reduce maintenance frequency.

Applications

• Conveyor systems
• Flight bar chain assemblies
• Lifting equipment and hoisting
• Material transport systems in mines
• Underground and open-pit mining operations

Features

• Material: alloy steel offering high tensile strength and wear resistance
• Surface: hot-dip galvanized for corrosion protection
• Available in multiple sizes, pitches and grades (C, C++, D)
• Compatible with sprockets, connectors and attachments for complete assemblies

Dimension (table) Chain Size | Diameter d (mm) | Pitch P (mm) | Round Horizontal Link b1 min (mm) | Round Horizontal Link b2 max (mm) | Flat Vertical Link c1 min (mm) | Flat Vertical Link c2 max (mm) | e max (mm) | Weight (kg)
26x92 | 26 ±0.8 | 92 ±0.9 | 30.1 | 87 | 30 | 75 | 30.0 | 13.7
30x108 | 30 ±0.9 | 108 ±1.1 | 34.1 | 99 | 34 | 87 | 34.0 | 18.0
34x126 | 34 ±1.0 | 126 ±1.3 | 38.1 | 111 | 38 | 99 | 38.0 | 22.7
38x126 | 38 ±1.1 | 126 ±1.3 | 42.1 | 123 | 42 | 111 | 42.0 | 30.1
38x137 | 38 ±1.1 | 137 ±1.4 | 42.1 | 123 | 42 | 111 | 42.0 | 29.0
38x146 | 38 ±1.1 | 146 ±1.5 | 42.1 | 123 | 42 | 111 | 42.0 | 27.6
42x137 | 42 ±1.1 | 137 ±1.4 | 18.6 | 139 | 46 | 115 | 48.5 | 37.0
42x146 | 42 ±1.1 | 146 ±1.5 | 48.6 | 139 | 46 | 115 | 48.5 | 36.0
42x152 | 42 ±1.4 | 152 ±1.5 | (not specified) | (not specified) | 54 | 127 | 56.0 | 47.0

Mechanical Properties (table) Chain Size | Chain Grade | Measuring Force (kN) | Test Force (kN) | Breaking Force min. (kN) | Elongation at test force max. (%) | Elongation at breaking force min. (%) | Fatigue Resistance min. (cycles)
26x92 | C | 26 | 637 | 850 | 1.6 | 11 | 70,000
26x92 | C++ | 26 | 700 | 970 | 1.6 | 14 | 70,000
26x92 | D | 26 | 740 | 1060 | 1.4 | 11 | 90,000
30x108 | C | 35 | 848 | 1,130 | 1.6 | 11 | 70,000
30x108 | C++ | 35 | 950 | 1,280 | 1.6 | 14 | 70,000
30x108 | D | 35 | 990 | 1,400 | 1.4 | 11 | 90,000
34x126 | C | 45 | 1,090 | 1,450 | 1.6 | 11 | 70,000
34x126 | C++ | 45 | 1,200 | 1,650 | 1.6 | 14 | 70,000
34x126 | D | 45 | 1,270 | 1,800 | 1.4 | 11 | 90,000
38x126 / 38x137 / 38x146 | C | 57 | 1,360 | 1,820 | 1.6 | 11 | 70,000
38x126 / 38x137 / 38x146 | C++ | 57 | 1,500 | 2,040 | 1.6 | 14 | 70,000
38x126 / 38x137 / 38x146 | D | 57 | 1,590 | 2,270 | 1.4 | 11 | 90,000
42x146 / 42x152 | C | 69 | 1,660 | 2,220 | 1.6 | 11 | 70,000
42x146 / 42x152 | C++ | 69 | 1,800 | 2,500 | 1.6 | 14 | 70,000
42x146 / 42x152 | D | 69 | 1,940 | 2,770 | 1.4 | 11 | 90,000

Notes Values are given with manufacturing tolerances where indicated. Chains are supplied in grades C, C++ and D with corresponding test and breaking forces and specified fatigue resistance cycles.
