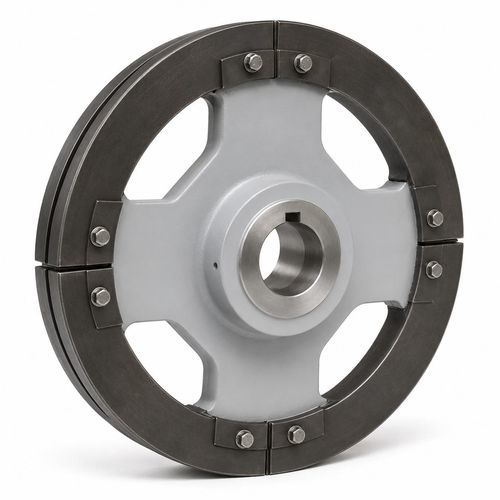

Plain Segmented Chain Wheels are designed for bucket elevators and conveyors that run DIN 764, DIN 766 or CICSA LH round steel chains. They also accommodate DIN 5699 and DIN 745 shackles, ATS bucket attachments and ALH/BLH scraper attachments. Replaceable flat segments are manufactured from C45 steel and induction hardened to improve wear resistance. A welded steel hub includes material discharge openings to prevent dust build-up. The bore is machined to match shaft dimensions and can include a keyway or be prepared for a keyless locking device. The segmented design permits replacement of worn running segments without replacing the whole wheel.

Introduction
These plain segmented wheels provide smooth chain support and guidance in bucket elevators and bulk material conveyors. The smooth running surface (no sprocket teeth) is suitable for round steel chains, bucket shackles and scraper attachments that travel over the rim. Replaceable segments mounted on a welded hub reduce maintenance costs and downtime by allowing partial renewal of the running surface.

Hub openings allow dust and loose material to discharge instead of accumulating around the wheel, supporting reliable chain movement when handling powders, ash, grains, minerals and other bulk materials.

The shaft bore is machined according to installation requirements and the wheel can use a keyed connection or a keyless locking device. Standard catalogue nominal diameters range from 450 to 800 mm and standard compatible chain diameters cover 13 to 26 mm; other diameters are available on request.

Parameter (table)
Code | Nominal Diameter D (mm) | Pitch Line Diameter Dp (mm) | DIN 764 / DIN 766 Chain Diameter (mm) | TOPONE LH Chain Diameter (mm) | D1 (mm) | A (mm) | C (mm) | E (mm) | Mass per Wheel (kg ≅)
450/13 | 450 | 453 | 13 | – | 440 | 20 | 60 | 120 | 100
450/14 | 450 | 454 | – | 14 | 440 | 20 | 60 | 120 | 100
450/16 | 450 | 456 | 16 | – | 440 | 22 | 62 | 120 | 100
460/16 | 460 | 461 | 16 | – | 445 | 22 | 62 | 120 | 100
500/13 | 500 | 503 | 13 | – | 490 | 20 | 60 | 120 | 110
500/14 | 500 | 504 | – | 14 | 490 | 20 | 60 | 120 | 110
500/16 | 500 | 506 | 16 | – | 490 | 22 | 62 | 120 | 110
500/18 | 500 | 508 | 18 | – | 490 | 25 | 65 | 120 | 110
540/13 | 540 | 543 | 13 | – | 530 | 20 | 60 | 120 | 120
540/16 | 540 | 546 | 16 | 16 | 530 | 22 | 62 | 120 | 120
560/16 | 560 | 561 | 16 | 16 | 545 | 22 | 62 | 120 | 130
600/16 | 600 | 601 | 16 | 16 | 585 | 22 | 62 | 130 | 140
630/16 | 630 | 631 | 16 | 16 | 615 | 22 | 62 | 130 | 145
630/18 | 630 | 633 | 18 | – | 615 | 25 | 75 | 130 | 155
630/19 | 630 | 634 | – | 19 | 615 | 25 | 75 | 130 | 155
630/20 | 630 | 635 | 20 | – | 615 | 25 | 75 | 130 | 155
630/22 | 630 | 632 | – | 22 | 610 | 28 | 78 | 130 | 160
650/16 | 650 | 651 | 16 | 16 | 635 | 22 | 62 | 140 | 150
650/18 | 650 | 653 | 18 | – | 635 | 25 | 75 | 140 | 170
650/19 | 650 | 654 | – | 19 | 635 | 25 | 75 | 140 | 170
650/22 | 650 | 657 | – | 22 | 635 | 27 | 77 | 140 | 175
700/19 | 700 | 704 | – | 19 | 685 | 25 | 75 | 150 | 200
700/22 | 700 | 702 | – | 22 | 680 | 28 | 78 | 150 | 200
700/26 | 700 | 706 | 26 | 26 | 680 | 32 | 92 | 150 | 210
800/22 | 800 | 802 | – | 22 | 780 | 28 | 78 | 150 | 240
800/23 | 800 | 803 | 23 | – | 780 | 30 | 80 | 150 | 240
800/26 | 800 | 801 | 26 | 26 | 775 | 32 | 92 | 150 | 250

Standards

• Name: Plain Segmented Chain Wheels
• MOQ: 1 Piece
• Package: Carton + Steel Pallet
• Manufacturing Standards: Manufactured to match round steel chains according to DIN 764 and DIN 766, shackles according to DIN 5699 and DIN 745, or TOPONE LH chains with ATS bucket attachments and ALH/BLH scraper attachments. Replaceable flat segments use induction-hardened C45 steel. The wheel uses a welded steel hub with material discharge openings. The bore can be machined for a keyway or locking device.
• Testing Standards: Not specified in the catalogue; wheel dimensions, chain compatibility and machined bore requirements shall be confirmed according to selected catalogue model and customer specifications.
• Application Standards: Suitable for bucket elevators and conveyors using DIN 764, DIN 766 or CICSA LH round steel chains. Compatible with DIN 5699 and DIN 745 shackles, ATS bucket attachments and ALH/BLH scraper attachments.
• Maintenance Standards: Flat running segments are removable and replaceable; inspect segments and chain-contact surfaces for wear during scheduled maintenance and replace worn segments with matching components.

Features / technical specifications

• Replaceable flat running segments: C45 steel with induction hardening for improved wear resistance.
• Hub: welded steel hub with material discharge openings to prevent accumulation of dust and loose material.
• Bore: machined to shaft dimensions; can include a keyway or be prepared for a keyless locking device.
• Compatibility: Designed for DIN 764 / DIN 766 / CICSA LH round steel chains; compatible with DIN 5699 and DIN 745 shackles; ATS bucket attachments; ALH/BLH scraper attachments.
• Construction: Segmented design allows replacement of worn running sections without replacing the entire wheel.
• Standard nominal diameters (catalogue): 450 mm to 800 mm. Standard chain diameters covered: 13 mm to 26 mm. Other diameters available on request.
• Typical D1 (bore outer / hub) dimensions and mass examples listed in parameter table; mass per wheel approximately from 100 kg up to 250 kg depending on model.
• Packaging: Carton + Steel Pallet.
