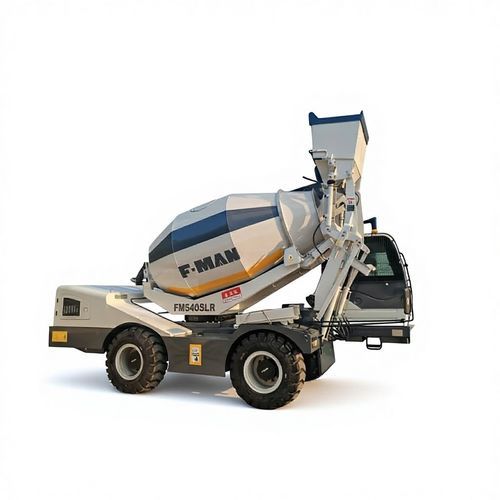

Self-loading concrete mixer FM540SLR

Overview
4 ton FM540SLR Self Loading Concrete Mixer with rigid chassis.

Key features

• Self-loading concrete mixer with double helix mixing (spiral blade) system
• Electronic weighing system (language optional)
• Hydraulic driving self-priming water pumps and high-pressure water pump for washing
• Luxury cab with ROPS, air conditioning and adjustable seat
• Rear wheel steering and 4 wheel drive

Specifications
Model: FM540SLR
Type: Rigid Chassis
Engine Model: YUCHAI
Drive: 4 Wheel Drive
Steering: Rear Wheel Steering
Operation Handle: A Four-way Hydraulic Pilot
Tyre: 16/70-20 Wire Tire
Tipping Chute: Two Removable Shaft Pins
Moving Hydraulic: Pump: FARSEE; Torque Converter: SOYOTA
Brake: Inner Wheel Brake, Emergency Brake and Negative Pressure Type Brake
Work Hydraulic: Pump/Valve: FARSEE
Mixing System: Speed Reducer: SOYOTA; Mixing Motor: FMAN
Water Supply: Hydraulic driving self-priming pumps
High-pressure Water Pump Wash: High-pressure water pump wash
Voltage: Battery 24V-100A (2 pieces)
Drive Axle: CAN
Weighing System: Electronic weighing system (language optional)
Spiral Blade in Tank: Double helix mixing
Drum: Geometric volume 5.5m³; Best stirring 4m³

Included / Optional equipment

• Luxury cab
• ROPS
• Inner wheel brake
• Cement bucket
• Air conditioning
• Adjustable seat
• Fire extinguisher
• Astern image alarm lamp
• Radio
• Escape hammer
• Astern sound prompt

Caractéristiques / Spécifications techniques

• Model: FM540SLR
• Type: Rigid Chassis
• Engine Model: YUCHAI
• Drive: 4 Wheel Drive
• Steering: Rear Wheel Steering
• Operation Handle: Four-way Hydraulic Pilot
• Tyre: 16/70-20 Wire Tire
• Tipping Chute: Two Removable Shaft Pins
• Moving Hydraulic — Pump: FARSEE; Torque Converter: SOYOTA
• Brake: Inner Wheel Brake, Emergency Brake, Negative Pressure Type Brake
• Work Hydraulic — Pump/Valve: FARSEE
• Mixing System — Speed Reducer: SOYOTA; Mixing Motor: FMAN
• Water Supply: Hydraulic driving self-priming pumps
• High-pressure Wash: High-pressure water pump
• Voltage: Battery 24V-100A × 2
• Drive Axle: CAN
• Weighing System: Electronic weighing system (language optional)
• Spiral Blade: Double helix mixing
• Drum Volume: Geometric 5.5 m³; Best stirring 4 m³
• Cabin & Safety: Luxury cab, ROPS, adjustable seat, fire extinguisher
• Additional Equipment: Cement bucket, astern image alarm lamp, astern sound prompt, radio, escape hammer
