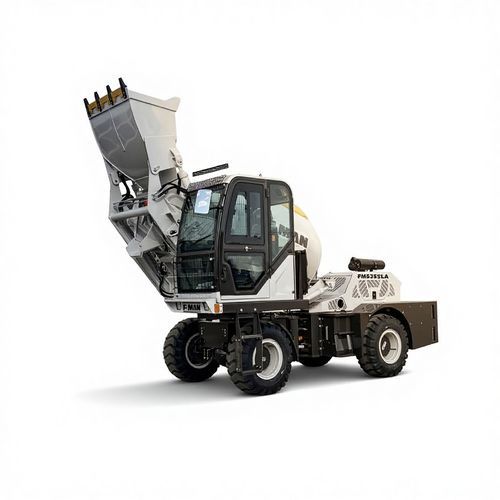

Self-loading concrete mixer FM535SLA

Product
FM535SLA self-loading concrete mixer for on-site mixing, dosing and transport. Model: FM535SLA.

Key specifications (table)
Model: FM535SLA
Chassis: Articulated chassis
Engine model: YUCHAI
Drive: 4 Wheel Drive (4x4)
Steering: Hydraulic articulated steering
Control: Two hydraulic pilot joysticks
Tyres: 12R-22.5 steel-wire high-pressure vacuum tyre
Discharge chute: One 151 cm detachable chute
Travel hydraulic: Pump FARSEE; Torque converter SOYOTA
Work hydraulic: Pump/Valve FARSEE
Mixing system: Speed reducer SOYOTA; Mixing motor FMAN
Water supply: Hydraulic driving self-priming pumps; high-pressure water pump for drum wash
Electrical: Battery 24V-100A ×2
Drive axle communication: CAN
Weighing: Electronic weighing system (language optional)
Drum/Blade: Geometric volume 5.5 m³; optimal mixing 3.5 m³; double-helix spiral blade
Frame material: Q345 manganese steel
Cab: Luxury cab with air conditioning; driving video; cement bucket

Features

• Integrated self-loading design combines material loading, mixing and transport for reduced cycle time on site
• Double-helix spiral blade in the drum for consistent, uniform mixing
• Electronic weighing system available (language optional) for accurate batching and traceability
• Hydraulically driven self-priming pumps for reliable water supply and a high-pressure wash pump for drum cleaning
• Articulated chassis with 4x4 drive and hydraulic articulated steering for improved maneuverability on uneven terrain
• Detachable 151 cm discharge chute for flexible placement and discharge control
• Major hydraulic and powertrain components by FARSEE and SOYOTA; mixing motor FMAN

Recommended applications
On-site concrete production and delivery where self-loading capability, accurate dosing and high maneuverability are required (road works, remote sites, small to medium construction projects).

Technical specifications

• Model: FM535SLA
• Type: Articulated chassis
• Engine: YUCHAI
• Drive: 4 Wheel Drive
• Steering: Hydraulic articulated steering
• Control handles: Two hydraulic pilot joysticks
• Tyres: 12R-22.5 steel-wire high-pressure vacuum tyre
• Discharge chute: 151 cm detachable chute
• Travel hydraulic pump: FARSEE; Torque converter: SOYOTA
• Service hydraulic: Pump/Valve FARSEE
• Mixer reducer: SOYOTA; Mixing motor: FMAN
• Water system: Hydraulic self-priming pumps; high-pressure wash pump
• Battery: 24V-100A ×2
• Drive axle communication: CAN
• Weighing system: Electronic weighing system (optional languages)
• Mixing blade: Double-helix spiral
• Drum capacity: Geometric 5.5 m³; optimal mixing 3.5 m³
• Frame: Q345 manganese steel
• Cab: Air-conditioned cab; driving video; cement bucket
