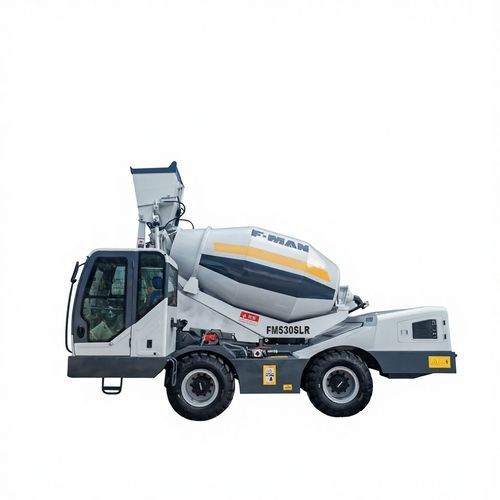

Self-loading concrete mixer FM530SLR

Overview
The FM530SLR integrates a rigid chassis self-loading concrete mixer design for high-output on-site mixing and delivery. With a geometric drum volume of 4.2 m³ and an optimal mixing capacity of 2.6–3.0 m³, the FM530SLR is suited to urban infrastructure, roadworks and foundation construction. Key systems include a double-helix mixing blade, hydraulic self-priming water supply and an electronic weighing option for accurate batching.

Key features

• Drum geometric volume: 4.2 m³; optimal mixing capacity: 2.6–3.0 m³
• Double-helix (double spiral) mixing blade for uniform mixing
• YUCHAI engine for consistent power delivery
• Hydraulic system: FARSEE pumps/valves and SOYOTA torque converter
• 4×4 drive with rear-wheel steering and electric four-way guide handle for precise maneuvering
• Hydraulic driving self-priming water pumps and high-pressure wash pump
• Electronic weighing system (language optional) and CAN bus drive axle for integrated control
• Operator safety and comfort: falling-object-protection cab, adjustable steering and seat, fire extinguisher, rear-view camera, alarm lamp, radio, escape hammer

Specifications
Model: FM530SLR
Type: Rigid chassis
Engine Model: YUCHAI
Drive: 4×4
Steering: Rear wheel steering
Operation Handle: Electric control button four-way guide handle
Tyre: 16/70-20 steel wire tyre
Tipping Chute: Two detachable chute sections
Moving Hydraulic: Pump: FARSEE; Torque Converter: SOYOTA
Brake: Inner wheel brake, emergency brake and negative pressure type brake
Work Hydraulic: Pump/Valve: FARSEE
Mixing System: Speed reducer: SOYOTA; Mixing motor: FMAN; Double-helix spiral blade
Water Supply: Hydraulic driving self-priming pumps
High-pressure Water Pump Wash: Yes
Voltage: Battery 24V-100A ×2
Drive Axle: CAN
Weighing System: Electronic weighing system (language optional)
Drum: Geometric volume 4.2 m³; best stirring 2.6–3.0 m³

Product description details
The FM530SLR pairs a rigid chassis with an advanced hydraulic architecture to deliver smooth, responsive operation and steady batch output. The double-helix spiral blade design ensures homogeneous concrete quality across each batch. Integrated electronic weighing and CAN bus drive axle enable accurate mix control and simplified site management. Operator-focused equipment improves safety and reduces fatigue during extended shifts, making the FM530SLR suitable for continuous, high-intensity concrete supply tasks.
