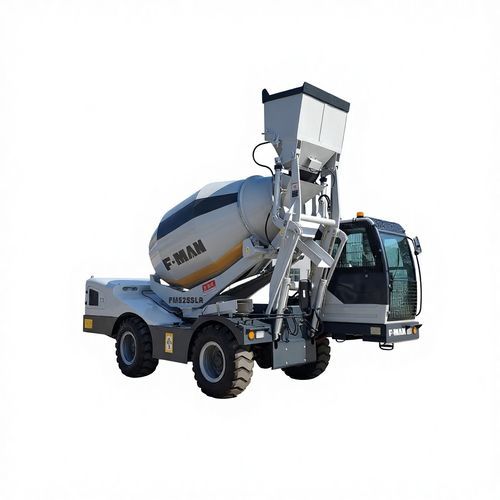

Self-loading concrete mixer FM525SLR

Product Overview
The FM525SLR is a self-loading concrete mixer on a rigid chassis, built for high-frequency concrete transport, on-site mixing and precise pouring on large infrastructure and urban construction projects. 4‑wheel drive and rear‑wheel steering enhance stability and manoeuvrability on confined or uneven sites. Hydraulic water supply and an electronic weighing system support accurate batching and simplified site operation.

Key Features

• Drum geometric volume: 3.6 m³; optimal mixing capacity: 2.5 m³
• Double‑helix spiral blades for improved mixing uniformity
• YUNNEI engine; FMAN mixing motor
• FARSEE pumps/valves and SOYOTA speed reducer/torque converter in hydraulic circuits
• 4×4 drive with rear‑wheel steering and electric four‑way guide handle
• Two detachable tipping chutes; 23.5‑16 steel‑wire tyres
• Hydraulic-driven self‑priming water pumps and high‑pressure wash pump
• Electronic weighing system (language optional); battery 24V‑100A ×2; CAN drive axle

Detailed Specifications

• Model: FM525SLR
• Type: Rigid chassis
• Engine model: YUNNEI
• Drive: 4 Wheel Drive
• Steering: Rear Wheel Steering
• Operation handle: Electric control button four‑way guide handle
• Tyre: 23.5‑16 steel wire tire
• Tipping chute: Two detachable chute
• Moving hydraulic: Pump: FARSEE; Torque converter: SOYOTA
• Work hydraulic: Pump/Valve: FARSEE
• Mixing system: Speed reducer: SOYOTA; Mixing motor: FMAN
• Water supply: Hydraulic driving self‑priming pumps
• High‑pressure water pump wash: Included
• Voltage: Battery 24V‑100A (2 pieces)
• Drive axle: CAN
• Weighing system: Electronic weighing system (language optional)
• Spiral blade in tank: Double helix mixing
• Drum: Geometric volume 3.6 m³; Best stirring 2.5 m³

Applications & Benefits
Suitable for concrete delivery, on‑site mixing and controlled pouring in infrastructure, road and urban construction. Integrated weighing and hydraulic water/wash systems support accurate batching, reduce manual handling and simplify routine maintenance.

Safety & Optional Equipment

• Falling‑objects protection cab
• Adjustable steering wheel and seat
• Fire extinguisher and escape hammer
• Rear‑view camera and astern sound prompt
• High‑pressure wash pump; alarm lamp; radio
