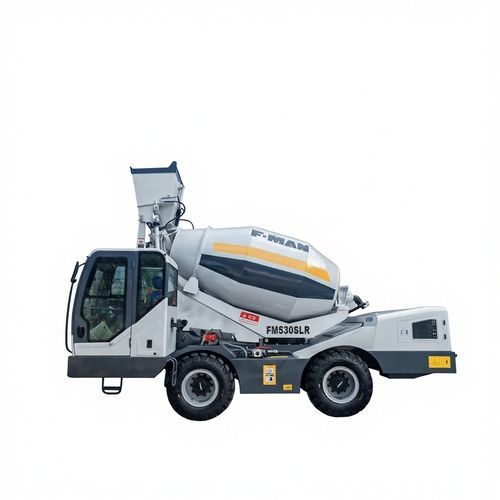

Self-loading concrete mixer FM530SLR

Overview
The FM530SLR is a rigid‑chassis self‑loading concrete mixer engineered for high‑intensity on‑site production and delivery of large concrete volumes. It features a 4.2 m³ geometric drum (optimal mixing 2.6–3 m³), double‑helix spiral blades, YUCHAI engine, FARSEE hydraulic units and SOYOTA torque converter to ensure consistent batch output and reliable hydraulic performance for infrastructure, road and foundation works.

Key capabilities and on-site features

• 4x4 drive with rear‑wheel steering and electric four‑way guide handle for precise maneuvering and accurate pouring
• Hydraulic driving self‑priming water pumps and high‑pressure wash pump for on‑site cleaning and supply
• Electronic weighing system (language optional), CAN‑bus drive axle and dual 24V‑100A batteries for fleet integration and dosage control
• Mixing system: FMAN mixing motor, SOYOTA reducer and double‑helix spiral blade for uniform mixes
• Operator safety and comfort: falling‑object protection cab, adjustable steering wheel and seat, rear‑view camera, alarm lamp, radio, escape hammer, reverse alarm

Specifications
Model: FM530SLR
Chassis: Rigid chassis
Drum geometric volume: 4.2 m³
Optimal mixing capacity: 2.6–3 m³
Engine: YUCHAI
Drive: 4 Wheel Drive
Steering: Rear wheel steering
Operation: Electric control button four‑way guide handle
Tyres: 16/70‑20 steel wire tires
Mixing system: Double helix spiral blade; Mixing motor: FMAN; Speed reducer: SOYOTA
Mobile hydraulic: Pump/Valve: FARSEE; Torque converter: SOYOTA
Water system: Hydraulic driving self‑priming pumps; High‑pressure wash pump
Electrical: Battery 24V‑100A x2; CAN‑bus drive axle; Electronic weighing system (language optional)
Chutes: Two detachable tipping chutes
Brake: Inner wheel brake, emergency brake and negative pressure type brake

Other built-in items

• Falling‑object protection cab
• Adjustable steering wheel
• Adjustable seat
• Fire extinguisher
• Rear‑view camera
• High‑pressure wash pump
• Alarm lamp
• Radio
• Escape hammer
• Reverse alarm

Application summary
Well suited for on‑site mixing, transport and precise pouring operations where mobility, consistent mixing quality and operational safety are required in urban construction, roadworks and foundation projects.
