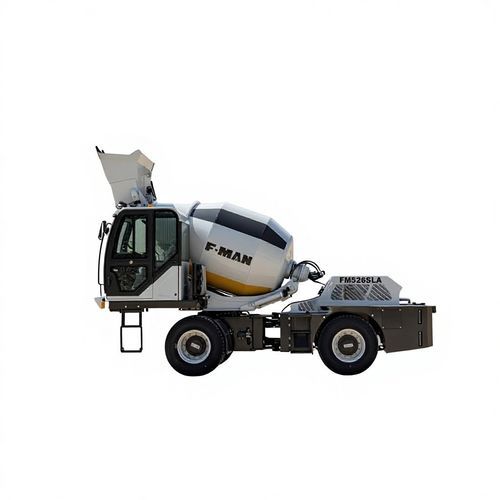

Self-loading concrete mixer FM526SLA

Overview The FMAN FM526SLA is an articulated-chassis self-loading concrete mixer designed for continuous high-intensity mixing and transport on infrastructure and urban construction sites. It features a Q345 manganese steel frame and a 4-wheel drive layout to ensure stability and traction in demanding terrain. The unit combines a 4m³ geometric drum with a best-stirring capacity of 2.6m³, a double-helix spiral blade and an FMAN mixing motor to secure uniform mix quality and high batch output.

Performance and Features Powered by a YUCHAI engine and an advanced hydraulic system (FARSEE pumps/valves and a SOYOTA torque converter), the FM526SLA delivers smooth operation, reliable power and optimized fuel consumption. The machine includes a detachable 150cm tipping chute, hydraulic self-priming water pumps and a high-pressure water-pump wash system for efficient cleaning and material handling. A SOYOTA speed reducer improves mixing consistency and durability.

Operator & Controls Hydraulic articulated steering with two hydraulic pilot joysticks and a CAN-drive axle provide precise manoeuvrability and control for tight-site pouring and on-site mixing. The cab offers an ergonomic layout with luxury trim options, a driving video system and easy maintenance access. Electronics include a 24V-100A dual-battery configuration and an electronic weighing system with optional language settings for accurate batch control and traceability.

Key specifications
Model: FM526SLA
Type: Articulated Chassis
Engine Model: YUCHAI
Drive: 4 Wheel Drive
Steering: Hydraulic Articulated Steering
Operation Handle: Two Hydraulic Pilot Joysticks
Tyre: 16/70-20 Steel Wire Tire
Tipping Chute: One 150cm Detachable Chute
Moving Hydraulic: Pump: FARSEE; Torque Converter: SOYOTA
Brake: Servo Pump And Single Wheel 4-Piston Plus Double Brake Caliper
Work Hydraulic: Pump/Valve: FARSEE
Mixing System: Speed Reducer: SOYOTA; Mixing Motor: FMAN
Water Supply: Hydraulic Driving Self-priming Pumps
High-pressure Water Pump Wash: High-pressure Water Pump Wash
Voltage: Battery 24V-100A 2 Pieces
Drive Axle: CAN
Weighing System: Electronic Weighing System (Language Optional)
Spiral Blade in Tank: Double Helix Mixing
Drum: Geometric Volume 4m³; Best Stirring 2.6m³
Others: Q345 Manganese Steel Frame; Luxury Cab; Driving Video; Cement Bucket; High-Pressure Water Pump Wash

Technical specifications

• Model: FM526SLA
• Type: Articulated Chassis
• Engine Model: YUCHAI
• Drive: 4 Wheel Drive
• Steering: Hydraulic Articulated Steering
• Operation Handle: Two Hydraulic Pilot Joysticks
• Tyre: 16/70-20 Steel Wire Tire
• Tipping Chute: One 150cm Detachable Chute
• Moving Hydraulic: Pump: FARSEE; Torque Converter: SOYOTA
• Brake: Servo Pump And Single Wheel; 4-Piston Plus Double Brake Caliper
• Work Hydraulic: Pump/Valve: FARSEE
• Mixing System: Speed Reducer: SOYOTA; Mixing Motor: FMAN
• Water Supply: Hydraulic Driving Self-priming Pumps
• High-pressure Water Pump Wash
• Voltage: Battery 24V-100A 2 Pieces
• Drive Axle: CAN
• Weighing System: Electronic Weighing System (Language Optional)
• Spiral Blade: Double Helix Mixing
• Drum Volume: Geometric 4m³; Best Stirring 2.6m³
• Frame: Q345 Manganese Steel
• Cabin: Luxury Cab
• Additional: Driving Video; Cement Bucket
