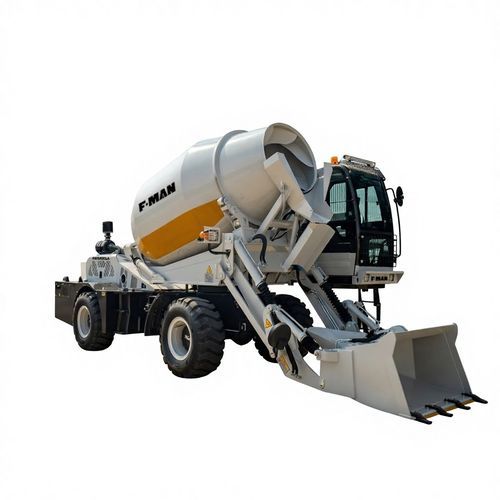

Self-loading concrete mixer FM540SLA

Overview
The FM540SLA is a self-loading concrete mixer mounted on an articulated chassis, engineered for heavy construction and long-distance concrete transport. Powered by a YUCHAI engine with four-wheel drive and hydraulic articulated steering, it combines off-road traction with maneuverability and precise control via two hydraulic pilot joysticks.

Technical table (extracted)
Model: FM540SLA
Type: Articulated Chassis
Engine Model: YUCHAI
Drive: 4 Wheel Drive
Steering: Hydraulic Articulated Steering
Operation Handle: Two Hydraulic Pilot Joysticks
Tyre: 12R-22.5 Steel Wire High Pressure Vacuum Tire
Mixing Drum Volume: Geometric 6.8 m³; Best Stirring 4 m³
Mixing System: FMAN mixing motor; SOYOTA speed reducer/torque converter
Hydraulics: FARSEE pumps/valves; FARSEE moving hydraulic pump
Weighing System: Electronic weighing system (language optional)
Water Supply and Wash: Hydraulic self-priming pumps; high-pressure wash pump
Voltage/Battery: 24V-100A ×2
Frame: Q345 manganese steel frame
Cabin & Others: Luxury cab with air conditioning, driving video, cement bucket

Key features

• Articulated chassis with hydraulic articulated steering for improved maneuverability
• YUCHAI engine with 4-wheel drive for reliable off-road capability
• Double-helix mixing blades and FMAN mixing motor for uniform concrete quality
• Large drum capacity: 6.8 m³ geometric volume, optimal stirring 4 m³
• FARSEE hydraulic pumps/valves and SOYOTA torque converter for stable hydraulic performance
• Electronic weighing system for accurate batching (language optional)
• Hydraulic self-priming water supply and high-pressure wash pump for effective cleaning
• Q345 manganese steel frame for structural durability
• Air-conditioned luxury cab with driving video for operator comfort and safety

Operator and maintenance
Cab layout and service access are designed for operator ergonomics and routine maintenance. Easy access to hydraulic components, modular assemblies and on-board wash systems reduce downtime and simplify field repairs. The electronic weighing interface supports precise batching and traceability.

Specifications

• Model: FM540SLA
• Type: Articulated Chassis
• Engine Model: YUCHAI
• Drive: 4 Wheel Drive
• Steering: Hydraulic Articulated Steering
• Controls: Two hydraulic pilot joysticks
• Drum: Geometric volume 6.8 m³; best stirring 4 m³
• Mixing blades: Double helix
• Mixing motor: FMAN
• Speed reducer/torque converter: SOYOTA
• Hydraulics: FARSEE pumps/valves
• Moving hydraulic pump: FARSEE
• Weighing: Electronic weighing system (language optional)
• Water: Hydraulic self-priming pumps; high-pressure wash pump
• Tyres: 12R-22.5 steel-cord high-pressure vacuum tyres
• Brake: Servo pump and single wheel; 4-piston plus double brake caliper
• Frame: Q345 manganese steel
• Cabin: Luxury, air-conditioned, driving video
• Batteries: 24V-100A ×2
• Drive axle interface: CAN
• Tipping chute: Two removable shaft pins
