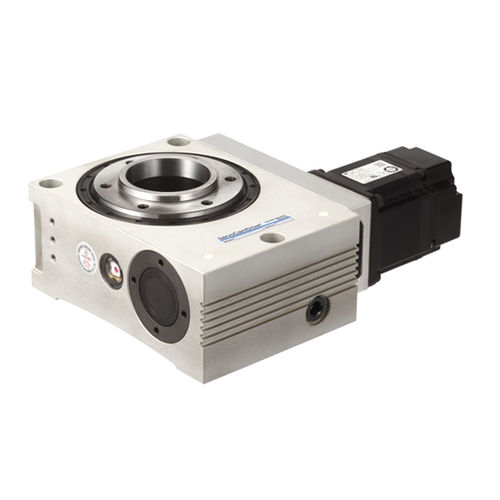

Electric rotary indexing table RC series

compact

RC Series Description SERVOCAMDRIVEⓇ RC series products are the completely new solution to satisfy the demands for multiple but small-quantity production in current manufacturing system. It provides flexibility in both setting and changing the number of stops for various applications. Features 1. Powered by a servo-motor, flexible setting the number of stops and cycle time can be programmed easily. 2. Featuring much less backlash than one of a reducer for servo-motor, high precision, high rigidity and long lifespan are guaranteed. 3. Our convenient preloaded system adjusts the error caused by wear from use to keep the precision constant. 4. Internal structure composed of roller gear devices transfers power of movement highly efficiently at a constant level. 5. Much lower profile with cross structure of input and output shaft enables compact design. 6. As an alternative, CAR series are available that its output shaft with large hollow facilitates passage of mechanical linkages, cabling and organizing around the output, and also allows compact equipment designs.
