Index unit CA series

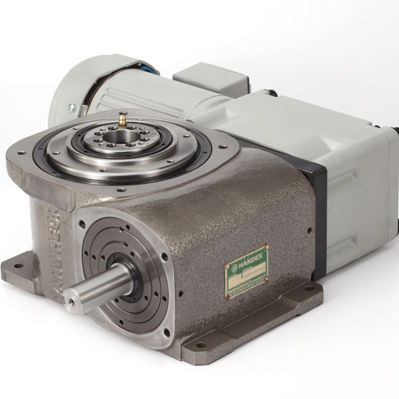

CA Series Description CA series is an index unit having low profile and compact housing with cost efficient shaft-mount type geared motor mounted to it. Research and study on the merits and internal structure of indexing tool with high performance of output resulted in the development and launch of CA series products. CA series is easy to be handled, and it's movement and stop can be controlled by inverter control without clutch brake. And by adopting maintenance-free of mechanical parts and components, maintenance cost also can be saved. Features 1. High output torque and long product lifetime 2. Compact and low profile structure 3. Wide range of sizes(70~450mm by axial shaft-to-shaft distance) 4. Unlimited mounting position (including vertical mounting) 5. Wide range of stops(indexing numbers) available (standard numbers of 2~32 stops / 5.5 & 8.5 also available) 6. High Accuracy (±30sec- 1 Dwell : Standard) 7. Wide output surface provides stable motion 8. Hollow of output to accommodate various wiring and air or hydraulic line
