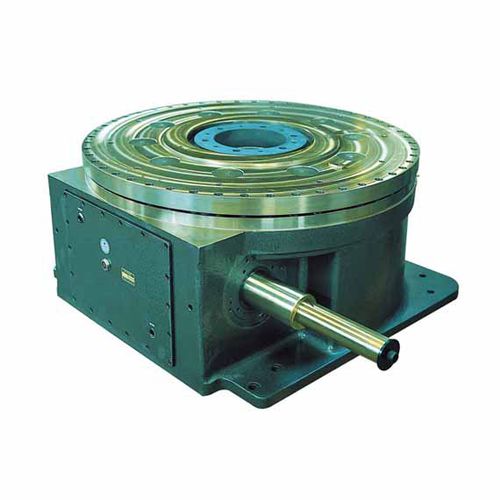

Rotary indexer CHD series

cylindrical camfor heavy loads

CHD Series Description The CHD series products are suitable for large-scale equipment requiring high capacity and high accuracy of division by adopting cylinder cam. It can run a table as large as 10 m in diameter with its wide surface of output turret. Also the output hollow shaft accommodates cabling and piping while it has low-profile structure but provides much higher torque than common standard type. As the housing contains lubricant oil in itself it does not require oil change for a long time and is suitable for heavy workload. Features 1. Robust structure design All-in-one housing structure design with ultra large output bearings applied. 2. High accurate repeatability: ± 0.02mm of Repeatability 3. Compact design Featured low-profile housing, large output turret, hollow type output shaft and no supportive devices necessary.
