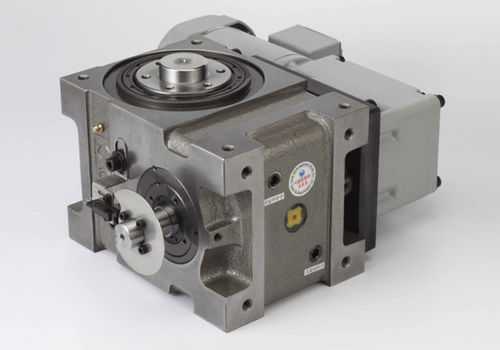

Oscillating indexer CF series

intermittentcamfor machines

CF Series Description Automatic manufacturing machines that feature the advantages of higher rigidity, accuracy and cost efficiency can be created when less impact is transmitted between the driving part and its consequent output motion such as intermittent movement, oscillating and continuous rotation. In 1993, we have released the CF series products which have a flat surface for combining table, arm, sprocket and other devices with the output shaft. Also we provide special option of hollow output shaft for easy arranging and managing of cables and pipes as well as maintenance. Features 1. Wide range of sizes and models With the standardized sizes of the axial distance (shaft-to-shaft) of 45~450mm, CF series can be broadly used from small sized electrical parts to large assembled products, and form machining center for transferring to heavy cutting. 2. High Efficiency / High torque capacity / High Accuracy With precisely machine-ground cam follower bearings and heat-treated cam bearing, CF series offers outstanding operation with high efficiency, high capacity and high accuracy without backlash and vibration during high speed driving. 3. Unlimited mounting positions All 6 directions mounting position available for flexible designing. 4. High speed Rotating The cam, cam-follower bearings, turret make no noise and no vibration and no heat from friction during high speed rotation as all the components are well positioned within housing, in which lubricant oil is filled. makes. 5. Diversified options Various options such as torque limiter, reducer, clutch, brake motor are available.
