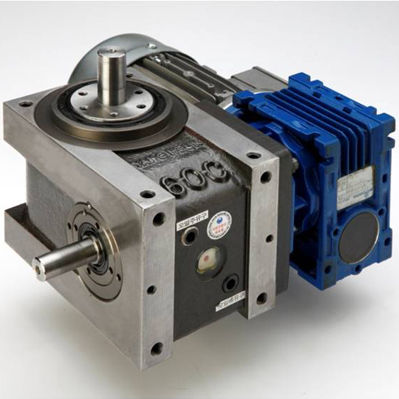

Cam indexer CFS series

for machinesbacklash-free

CFS Series Description CFS series products are the roller gear cam index drives developed for quick and convenient manipulation. Its output shaft also can be used with flange clamping, by which its application can be easily done. It is possible to combine directly a table, an arm, and a sprocket with the flange easily. And also power lock and torque limiter protecting index drives and equipment are mountable to the output shaft for various usages. With wide range of sizes and models available, high efficiency and high torque capacity are guaranteed with no vibration and less back lash during high speed operation. Features 1. Wide range of sizes and models With the standardized sizes of the axial distance (shaft-to-shaft) of 45~450mm, CFS series can be broadly used from small sized electrical parts to large assembled products, and form machining center for transferring to heavy cutting. 2. The number of stop from 2~16 stops available. 3. Easy parts and components adaptation is available with the output side being one body of shaft and flange, and wide options for design are also available with the wide options for mounting to all 6 sides, such as torque limiter, reducer, clutch, brake and motor.
