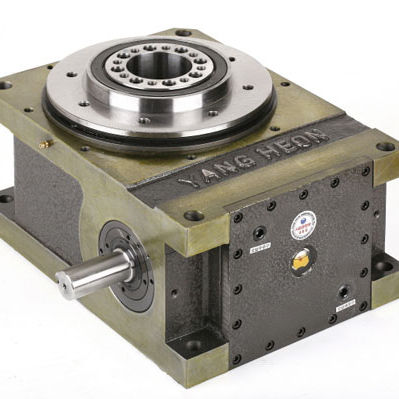

CT Series
Description
Turn table is a critical device for many kinds of automatic machines works such as drilling, reaming, caulking, pressing, inspecting and conveying workload. CT series has been developed as a effective connecting drive tables for these works. Its output turret has a stationary post with a hollow shaft to facilitate placing fixed table, cabling and piping. In addition, as smaller indexing angles are available, it's an optimal device as a base system for rotary type of automated assembling machine and packing machine which requires multi-administrative work. With being combined a reducer with option clutch brake, it also provides flexibility and accuracy on setting dwell time, and high stability of spinning. It's considered as the best base system with energy saving and high cost efficiency required today.
Features
1. Wide range of sizes and number of stops
CT series offers standardized axial distance (shaft-to-shaft) 63 to 440mm for selecting optimal size by workload condition, and large output space that allows many stops (4 to 24 stops / 1 dwell)
2. Low-profile housing structure
Its low profile and large surface for mounting provides very stable structure and high rotating accuracy, suitable for table rotation.
And, as it can fix and combine jigs or other devices to the inside of the rotating turret, it helps build the equipment to be compact.
3. Wide range of options
Various options such as torque limiter, reducer, clutch, brake can be mounted and combined on CT series.
