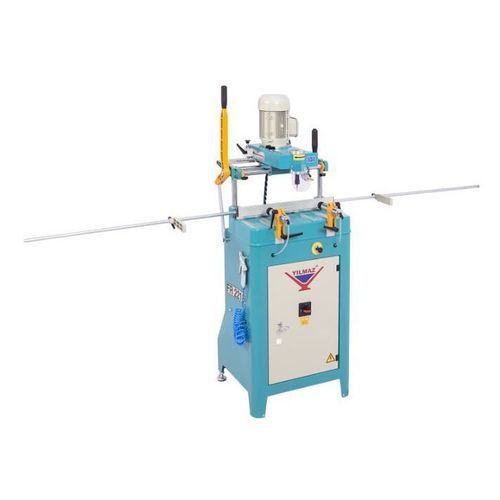

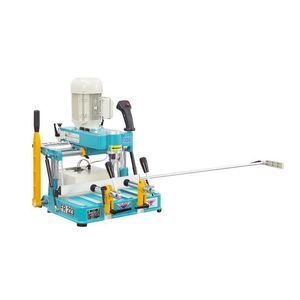

Manually-controlled copy router FR 221 S

single-spindlefor PVCfor aluminum

Product information
Used for machining lock slots, drilling handle and hinge holes, espagnolette holes and water‑drain slots on aluminium and PVC profiles up to 3 mm thickness.

General features

• Processes lock slots, handle and hinge drilling, espagnolette and drainage slots on PVC and aluminium profiles
• Cast aluminium structure with corrosion‑proof bearing shaft
• Steel‑sheet machine stand
• Electroplated copy template with 2 tracer pins
• Included router bit: Ø5×L60 mm
• Clamping capacity (W × H): 10–130 mm × 20–130 mm

Standard accessories

• Spray tool lubrication system
• Ø5×L60 mm router bit
• Air gun
• Left and right profile stops (2 pieces)
• Pneumatic horizontal clamps (2 pieces)

Optional accessories

• Spare Ø5×L60 mm router bits
• Special copy templates
• MA 240 centring apparatus
• MKN 150 roller conveyor
• MKN 300 roller conveyor

Technical specifications
Electrical: 750 W / 400V AC 3P+PE / 50/60 Hz
Router bit / Spindle: Ø5×L60 mm — 14,000 RPM
Air consumption: 5 L/min at 6–8 bar
Dimensions: 55 × 58 × 133.5 (units as provided on site)
Weight: 103 Kg (packaged) / 77 Kg (net)

Characteristics / Technical data

• Model: FR 221 S
• Application: Machining lock slots, handle and hinge drilling, espagnolette holes and drainage slots on aluminium profiles up to 3 mm
• Motor power: 750 W
• Supply: 400V AC 3P+PE / 50/60 Hz
• Spindle speed: 14,000 RPM
• Air: 5 L/min at 6–8 bar
• Clamping capacity: W 10–130 mm; H 20–130 mm
• Construction: Cast aluminium frame, corrosion‑proof bearing shaft, steel‑sheet stand
• Standard kit: Spray lubrication, air gun, profile stops, pneumatic clamps
• Optional: Spare bits, special templates, centring apparatus, roller conveyors
