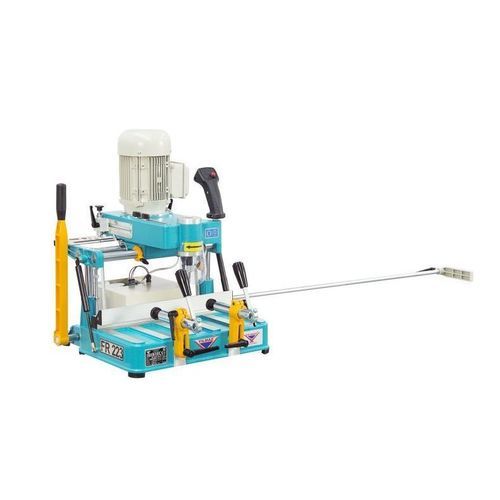

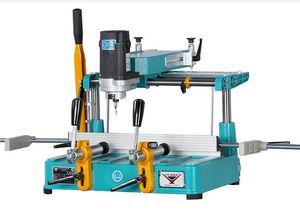

Manual copy router FR 223

with 3 axes1-spindlefor PVC

Product Info
Portable template copy router for processing lock slots, drilling handles, hinges, espagnolette and barrel holes, and opening water drain slots on PVC and aluminium profiles up to 3 mm thickness. Available in standard FR 223 and spray-cooled FR 223S variant.

General Features

• Processing of lock slots, handle holes, hinges, espagnolette and barrel holes on PVC and aluminium profiles
• Ergonomic handle for ease of operation
• Cast aluminium construction with corrosion-proof bearing shaft
• Machining capacity: X = 270 mm, Y = 110 mm, Z = 110 mm
• Clamping capacity: W = 140 mm
• Chrome electroplated copy template and two tracer pins
• Equipped with Ø5 x L60 mm router bit (14,000 RPM)

Standard Accessories

• Ø5 x L60 mm router bit
• Left and right profile stops (2 pcs)
• Manual horizontal clamps (2 pcs)
• Copy template

Optional Accessories

• Electric spray cooling system (FR 223S)
• MS machine stand kit
• Spare Ø5 x L60 mm router bit
• Special copy templates
• MKN 150 roller conveyor

Technical Specifications Table
Power: 750 W / 230V AC 1P+N+PE / 50Hz
Machining capacity: X = 270 mm | Y = 110 mm | Z = 110 mm
Spindle / Tool: Ø5 x L60 mm — 14,000 RPM
Dimensions (W x D x H): 59 x 52 x 64.5 cm
Weight: 48 kg / 46 kg (variants)

Characteristics / Technical specifications

• Model / Series: FR 223 (FR 223S variant with spray cooling)
• Application: Lock slots, handles, hinges, espagnolette/barrel holes, water drain slot on PVC and aluminium profiles up to 3 mm thickness
• Motor power: 750 W
• Voltage / Frequency: 230 V AC / 50 Hz
• Machining travel: X 270 mm, Y 110 mm, Z 110 mm
• Clamping capacity: W 140 mm
• Tool included: Ø5 x L60 mm router bit (14,000 RPM)
• Construction: Cast aluminium with corrosion-resistant bearing shaft
• Standard and optional accessories as listed above
• Compact dimensions suitable for workshop and on-site use
