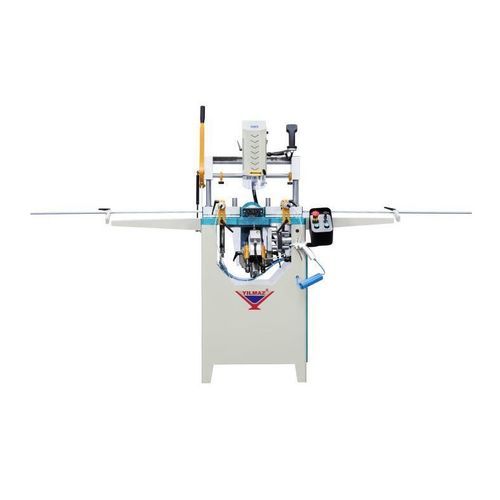

Manual copy router CRM 201 S

manually-controlledtriplefor PVC

Product information
Template copy router designed for machining lock slots, handle drilling, triple-hole drilling, hinges, espagnolette holes and opening adjustable water-drain slots on PVC and aluminium profiles. Suitable for aluminium profiles with wall thickness up to 3 mm.

General features

• Manual copy mechanism producing 1:1 reproduction of the template
• Powerful spindle motor for machining aluminium profiles up to 3 mm wall thickness
• Cutting fluid spray to the milling point controlled via joystick
• Ability to open slots of varying lengths and widths without the copy template
• Adjustable water-drain slot length on the template
• Copy milling motor controlled directly from the joystick
• Reference stops on both sides of the machine
• Standard inlet/outlet profile supports
• Ergonomic handheld control unit
• Horizontal-axis triple-hole drilling mechanism
• Pneumatically operated water-slot opening system
• Equipped with solid cutter bits

Standard accessories

• Tools for copy routing and water-drain operations (1 x Ø5xL80 mm, 1 x Ø5xL60 mm)
• Tools for triple drilling mechanism (2 x Ø10 mm, 1 x Ø13 mm)
• Air gun
• 2 profile stops (left and right)
• Spray tool lubrication system
• 2 horizontal clamps
• 2 vertical clamps

Optional accessories

• Spare cutter Ø5xL80 mm (for copy routing)
• Spare cutter Ø5xL60 mm (for water-drain)
• Spare collets for Ø5 mm cutter
• Spare cutter Ø10 mm (for triple drilling)
• Spare cutter Ø13 mm (for triple drilling)
• Special copy templates

Technical specifications

• Model: CRM 201 S
• Application: Machining lock slots, handle drilling, triple-hole drilling, hinges, espagnolette holes and opening water-drain slots on PVC and aluminium profiles
• Copy mechanism: Manual 1:1
• Material capability: PVC and aluminium profiles (aluminium up to 3 mm wall thickness)
• Spindle/milling: Powerful spindle motor; copy milling motor joystick-controlled
• Cutting fluid: Joystick-controlled spray to milling spot
• Water slot: Length adjustable on template; pneumatic opening system
• Drilling: Triple-hole mechanism on horizontal axis
• Stops & supports: Reference stops both sides; inlet/outlet profile supports standard
• Controls: Ergonomic handheld control unit
• Included tooling: Solid cutter bits and standard set for copy routing, water drain and triple drilling
• Clamping: 2 horizontal and 2 vertical clamps standard
