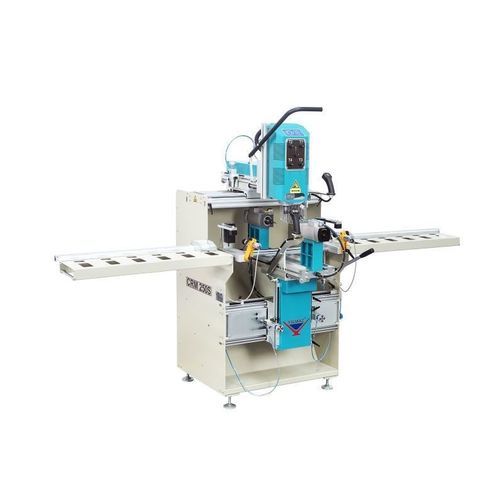

Manual copy router CRM 250 S

manually-controlled3-spindlefor PVC

Product info
Designed for fast, precise machining of lock holes, handle and hinge drilling, espagnolette holes and water-drain slots on aluminium and PVC profiles in a single cycle without releasing the workpiece.

General features

• Template copy router with 1 vertical and 2 horizontal spindle motors
• Performs operations on three sides of the profile without reclamping
• Pneumatic clamping: 2 horizontal and 2 vertical clamps
• Pneumatic horizontal and vertical tracers for diameters Ø5, Ø8 and Ø10 mm
• Horizontal and vertical templates with standard figures for PVC and aluminium profiles
• High-precision bearing mechanism, gas shock absorbers and ergonomic arm design
• 1 m roller tables on both right and left sides
• Manually adjustable profile stops (right and left) for accurate positioning
• Spray tool cooling and spray lubrication system
• Max clamping capacity: Width 200 mm, Height 150 mm

Standard accessories

• 1 x Ø5 x L100 mm cutter bit and 2 x Ø10 x L100 mm cutter bits supplied
• Air gun
• 2 profile stops (left and right)
• Spray tool lubrication system
• 2 pneumatic horizontal clamps and 2 pneumatic vertical clamps

Optional accessories

• Spare cutter bits Ø5 x L100 mm and Ø10 x L100 mm
• Spare collets for Ø5 mm and Ø10 mm cutter bits
• Special templates

Product video
Embedded product video available (YouTube) titled "CRM 250 S – Template Copy Router Machine".

Technical specifications

• Model: CRM 250 S
• Application: Lock holes, handle and hinge drilling, espagnolette holes, water-drain slots on PVC and aluminium profiles
• Spindles: 1 vertical + 2 horizontal
• Clamps: 2 pneumatic horizontal, 2 pneumatic vertical
• Tracer diameters: Ø5 / Ø8 / Ø10 mm
• Cutter bits supplied: 1 x Ø5 x L100 mm; 2 x Ø10 x L100 mm
• Cooling/Lubrication: Spray tool cooling and spray lubrication system
• Roller tables: 1 m each side (right and left)
• Profile stops: Manually adjustable, right and left
• Max clamping capacity: Width 200 mm; Height 150 mm
• Mechanics: High-precision bearings, gas shock absorbers, ergonomic arm
