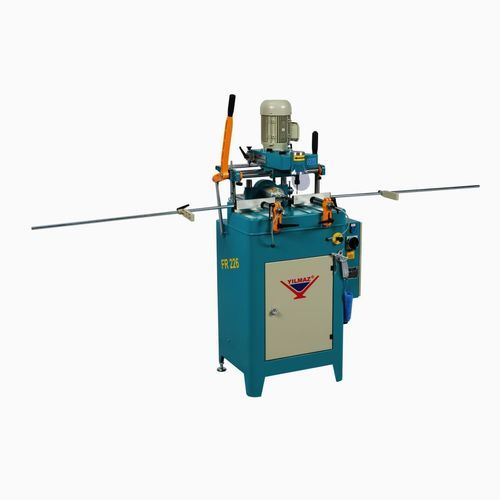

Automatic copy router FR 226 S

3-spindlefor PVCfor aluminum

Product overview
Automatic copy router FR 226 S for processing lock slots, drilling handles, hinges, espagnolette and barrel holes, and opening water drain slots on PVC and aluminium profiles up to 3 mm thickness.

Applications

• Profile machining for door and window hardware on PVC and aluminium sections
• Production and repair shops requiring precise lock/handle/hole positioning
• Series and piece production where repeatable copy routing is needed

Main features

• Hydro‑pneumatic triple‑hole drilling mechanism for simultaneous drill operations
• Cast aluminium structure with corrosion‑proof bearing shaft
• Robust steel‑sheet machine stand for stable machining
• Equipped with cutter tools and spray saw blade lubrication system
• Pneumatic clamping and adjustable profile stops for repeatable positioning

Standard accessories

• Spray lubrication system for saw blade
• Router cutter Ø5xL80 mm
• Triple‑hole drilling tools (2 x Ø10 mm + 1 x Ø13 mm)
• 2 profile stops (left and right)
• 2 pneumatic horizontal clamps
• Air gun

Optional accessories

• Spare router bit Ø5xL80 mm
• Spare drill bit Ø10 mm (for triple hole drill)
• Spare drill bit Ø13 mm (for triple hole drill)
• Special copy templates
• MA 240 centring apparatus
• MKN 150 length stop

Technical specifications

• Electrical: 2 x 750 Watt / 400V AC 3P+PE / 50/60 Hz
• Rotation speed (spindle / saw): 14,000 / 900 RPM
• Cutter capacity: Ø5xL80 mm
• Air consumption: 5 L/min
• Required air pressure: 6–8 bar
• Dimensions: 85x56x147 (as indicated)
• Weight: 107.0 (as indicated)
