Manual copy router FR 222

1-spindlefor PVCfor aluminum

Product info

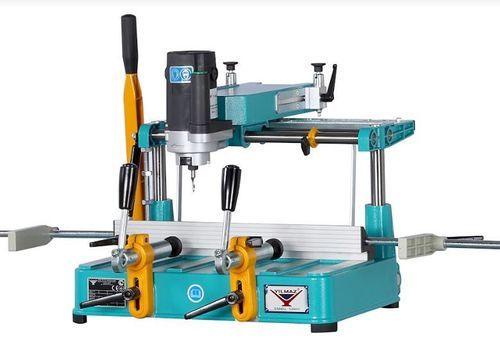

Portable template copy router for processing slots for locks, drilling handles, hinges, espagnolette and barrel holes, and for opening water drain slots on PVC and aluminium profiles up to 3 mm (PVC) and 2 mm (aluminium) thickness respectively.

General features

• Processes lock slots, drill holes for handles, hinges, espagnolette and barrel holes on PVC and aluminium profiles
• Cast aluminium structure
• Corrosion‑proof bearing shaft
• Electroplated copy template for accurate replication
• Equipped with Ø5 mm router bit (standard)

Standard accessories

• Router bit Ø5xL60 mm (included)
• 2 profile stops (left and right)
• 2 horizontal clamps

Optional accessories

• Spare router bit
• Special copy template
• MS‑type machine stand

Technical specifications

• Model: FR 222
• Applications: processing slots for locks; drilling handles, hinges, espagnolette and barrel holes; opening water drain slots
• Suitable materials: PVC and aluminium profiles
• Maximum profile thickness: PVC up to 3 mm; aluminium up to 2 mm
• Structure: cast aluminium
• Bearing shaft: corrosion‑proof
• Copy template: electroplated
• Standard router bit: Ø5 mm (Ø5xL60 mm included)
• Standard accessories: 2 profile stops (left/right), 2 horizontal clamps
• Optional accessories: spare router bit, special copy template, MS machine stand
