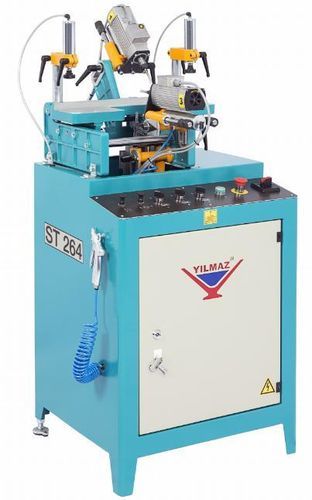

3-axis milling machine ST 264

2-axisuniversalwith moving table

Product info
The ST 264 is a milling and drilling machine designed to open water drain slots on PVC profiles. It operates on two or three axes with pneumatic actuation and is suitable for varied angles and heights.

General features

• Pneumatic opening of water slots on PVC profiles
• Independent driller motors for operation in three axes; two motors on different axes can run simultaneously
• Practical adjustment of slot length and depth using stoppers
• Pneumatically controlled motor movement with adjustable speed
• 2 pneumatic clamps ensure precise profile clamping
• Automatic drilling start via push button
• Axis misalignments corrected pneumatically using a movable table
• Motor selection via switches
• PLC control system
• Maximum profile dimension: H115 x W100 mm

Standard accessories

• Service keys
• Supplied with milling cutters ø5 x L80 mm and ø5 x L60 mm
• Air gun

Optional accessories

• Spare cutter bits ø5 x L80 mm
• Spare cutter bits ø5 x L60 mm

Technical specifications

• Model: ST 264
• Function: opening water drain slots on PVC profiles
• Axes: operation in two or three axes (independent driller motors)
• Clamping: 2 pneumatic clamps for precise fixing
• Control: PLC system with motor selection switches
• Motor movement: pneumatically controlled and speed-adjustable
• Automation: drilling starts automatically with a push button
• Adjustment: slot length and depth adjustable via stoppers; axis misalignments corrected via movable table
• Maximum profile dimension: H115 x W100 mm
• Standard tooling: milling cutters supplied ø5 x L80 mm and ø5 x L60 mm
• Included accessories: service keys, air gun
• Optional spare parts: cutter bits ø5 x L80 mm and ø5 x L60 mm
