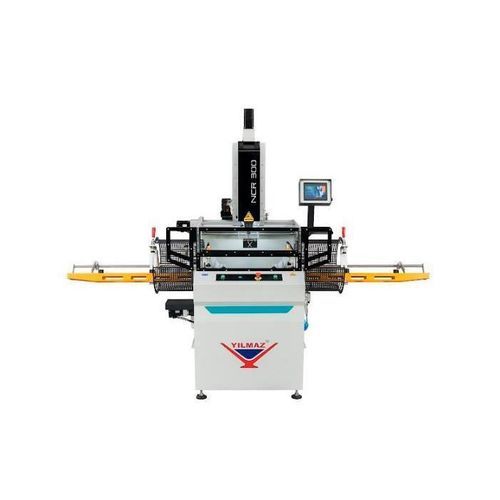

Numerical control copy router NCR 300

NCdigitalPLC-controlled

Product info
NCR 300 and NCR 300P are single-head, 4-axis NC copy routers engineered for machining PVC and aluminium profiles. The machine programs X, Y, Z and C coordinates via servo-controlled motors to mill lock slots, drill handles/hinges/espagnolette holes and cut water-drain grooves, removing the need for templates.

Product video
Video available demonstrating NCR 300 / NCR 300P features and operation.

Technical specifications
Electrical: 5.5 kW / 20 A / 400 V AC 3P+PE / 50/60 Hz.
Travel (X×Y×Z): 300 × 120 × 115 mm.
Spindle: 2.2 kW, 12,000 RPM; standard tool Ø8 × L120 mm.
Air flow: 110 L/min; Air pressure: 6–8 bar.
Max profile length: up to 2750 mm.
Dimensions: 163.5 × 281 × 218.
Weight: 600 kg / 520 kg.

General features

• Designed for daily machining of PVC, aluminium and low-alloy profiles on four surfaces simultaneously.
• Servo-controlled rotary table with index stops at 0°/90°/180°/270°.
• Machinable profile length up to 2750 mm using multiple pop-up length stops.
• Machining capacity X: 300 mm, Y: 120 mm, Z: 115 mm; clamping ranges W 120–30 mm, H 115–30 mm, L 2750–400 mm.
• Electronic and pneumatic braking system for head and table safety.
• ER16 collet; spindle 2.2 kW (12,000 RPM).
• NCR 300: 7" colour touchscreen + PLC control. NCR 300P: 15.4" Windows-based industrial PC touchscreen + PLC; DXF import supported on NCR 300P.

Standard accessories

• Ø8 × L120 mm cutter bit.
• 2 horizontal and 2 vertical pneumatic clamps.
• Spray tool lubrication system.
• Multiple left and right profile stops.
• Service spanners (22 mm) and collet wrench.
• LED lighting, clamp extenders, profile centring device, air gun.

Optional accessories

• Barcode reader.
• Spare Ø8 × L120 carbide double‑lip cutter bits.
• Spare Ø8 × L120 carbide single‑lip cutter bits.
• Spare Ø8 × L63 carbide single‑lip cutter bits.
• Spare ER16 collets for Ø8 mm tools.

Technical characteristics

• Model: NCR 300 / NCR 300P — single-head, 4-axis NC copy router.
• Axes: X, Y, Z, C with servo motors for coordinated machining.
• Tool holder: ER16; standard cutter Ø8 × L120 mm.
• Controls: NCR 300 = 7" touchscreen + PLC; NCR 300P = 15.4" Windows industrial PC touchscreen + PLC (DXF import).
• Air consumption: 110 L/min; Operating pressure: 6–8 bar.
