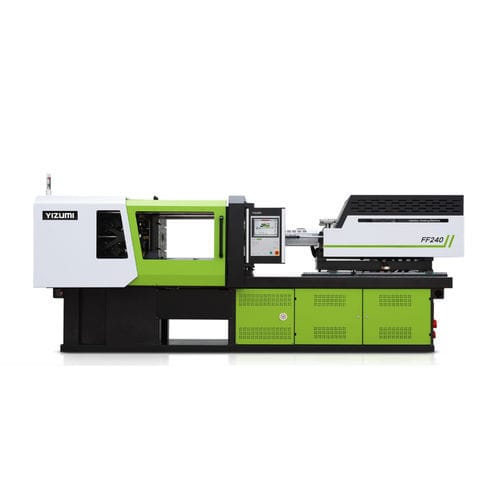

Horizontal injection molding machine FF

fully-electric

This series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, it meets demanding core product needs. Clamping Unit Dual-cylinder parallel ejection design - Uniform force application for mold release. - Accuracy of ejection position up to 0.2mm, conducive to product accuracy and repeatability. - Can achieve functions such as various modes of synchronized ejection and ejector retraction, gate cutting inside the mold, etc. High stability of the TBF technology - The clamping unit adopts the TBF (Tie Bar Free) technology for easy operation and maintenance. - Keep the mold area clean to prevent product contamination. Unique “SMART” mold protection feature - Can detect very small obstacles and resistance. - Reduce the extent of mold damage when there are foreign objects in the mold cavity or faulty operation occurs. Injection Unit The use of advanced LGS（Linear Guide Support） technology Integrated design enhances the overall rigidity of the injection unit. No unnecessary friction. Fast forward and backward. Built-in hydraulic pump station Support a variety of molding process with great flexibility and efficiency. For ejector, nozzle contact force & core pull. Closed loop injection pressure control technology - Provide more accurate control for more stable, reliable and precise molding. - The stability precision of injection pressure and holding pressure is at ±0.1Mpa. Unique servo direct control (SDC) technology - Four servo motors control injection, plasticizing, clamping, and ejection independently,
