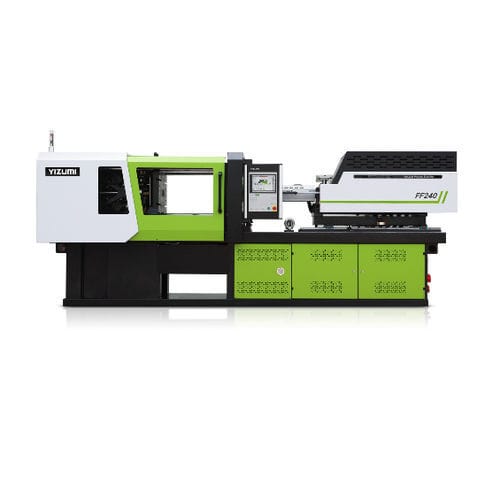

Horizontal injection molding machine P-E

servo-hydraulictie-bar-lessfor thin-walled parts

Overview
The P-E Series high-speed injection molding machines combine servo-driven actuation and efficient transmission to reduce energy consumption and improve cycle times. Machines integrate a built-in hydraulic pump station and offer clamping forces from 200 to 350 tons with dry cycle times of 2.0–2.6 seconds, making them suitable for thin-wall, IML and high-speed packaging applications in automotive, medical and electronics production.

Highlights

• Servo drive with efficient transmission for reduced energy use
• Tie-bar free (TBF) clamping for easy mold access and cleaner mold area
• Fast dry cycle (2.0–2.6 s) for high throughput
• Closed-loop control for precise and repeatable molding

Clamping Unit

• Tie-bar free (TBF) design for simplified maintenance and reduced contamination risk
• Large beveled crosshead toggles to optimize force transfer and minimize platen deformation
• SMART mold protection able to detect small obstructions and reduce mold damage

Injection Unit

• Selected screw and barrel combinations matched to material and process to ensure consistent plasticizing
• Horizontal double-carriage layout to eliminate rotary torque and reduce friction for reliable injection motion
• Closed-loop injection pressure control with stability of ±0.02 MPa for accurate pressure and holding phases

Overall System & Control

• KEBA2000 controller with 15" HD touchscreen: features PDP, SPC, oscilloscope display, networked remote operation, Industry 4.0 support, 1 ms scan cycle and multi-level user access
• YIZUMI SDC (Servo Direct Control) algorithm: independent servo control of injection, plasticizing and clamping for faster response and improved precision

Product Video / Application Examples
Embedded videos and application examples demonstrate thin-wall IML cup molding and typical industry uses in Medical, Auto Parts, 3C Electronics and High-speed Packaging.

Technical specifications

• Series name: P-E Series
• Drive type: Servo motors with efficient transmission
• Energy saving: Approx. 30–50% vs. standard models (condition dependent)
• Built-in hydraulic pump station: Yes
• Dry cycle time: 2.0–2.6 seconds
• Clamping force range: 200–350 tons
• Clamping technology: Tie-bar free (TBF)
• Mold protection: SMART mold protection (detects small obstacles/resistance)
• Injection control: Closed-loop injection pressure control; pressure/holding stability ±0.02 MPa
• Injection unit features: Professional screw/barrel selection; horizontal double-carriage design
• Controller: KEBA2000 — 15" HD touchscreen, PDP, SPC, oscilloscope display, remote/networked control, Industry 4.0 support, 1 ms scan cycle, 16 access levels
• Proprietary tech: YIZUMI SDC (Servo Direct Control) technology
