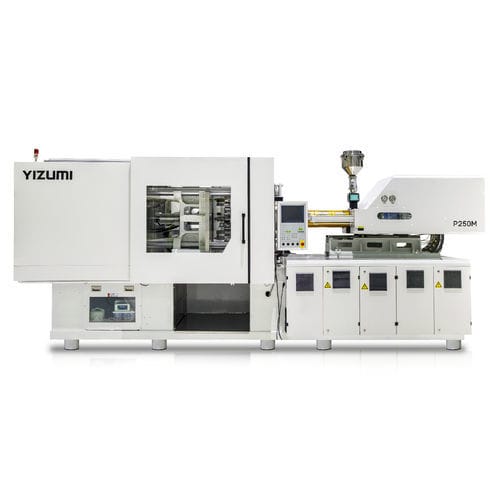

Horizontal injection molding machine P-M

hydraulicelectricelectric and hydraulic

Overview
YIZUMI P-M Series high-speed injection molding machines deliver injection speeds up to 500 mm/s (optional) with precise clamping and a cleanroom-compatible design suitable for controlled production environments.

Key features

• Designed for cleanroom production to meet strict contamination-control requirements
• High injection speed (maximum 500 mm/s, optional)
• High-rigidity mechanical structure for stable operation at high speed
• Reinforced toggle mechanism to increase strength, rigidity and service life
• Large inward toggle design to reduce platen deformation and ensure dimensional accuracy
• Rigid clamping unit suited for high length-to-diameter ratio or deep-cavity parts
• Single-cylinder injection system with optional electric injection unit for improved accuracy and synchronous plasticizing
• Screws with large L/D ratio to enhance plasticizing efficiency

Design highlights

• Optimized clamping unit providing higher clamp force and better support for thin-wall and deep-cavity molding
• Robust platen, tie bars and frame with improved mechanical properties to reduce deformation
• Optional electric injection unit available to enhance injection precision and enable synchronous plasticizing

Industry applications

• Medical (cleanroom-compatible production)
• Automotive components
• 3C electronics
• High-speed packaging

Technical specifications

• Series name: P-M Series
• Maximum injection speed: up to 500 mm/s (optional)
• Clamping: high-rigidity clamping unit with reinforced toggle design
• Injection system: single-cylinder injection; optional electric injection unit for higher accuracy and synchronous plasticizing
• Screw: large L/D ratio for improved plasticizing efficiency
• Suitability: designed for cleanroom production and for deep-cavity or high L/D parts
