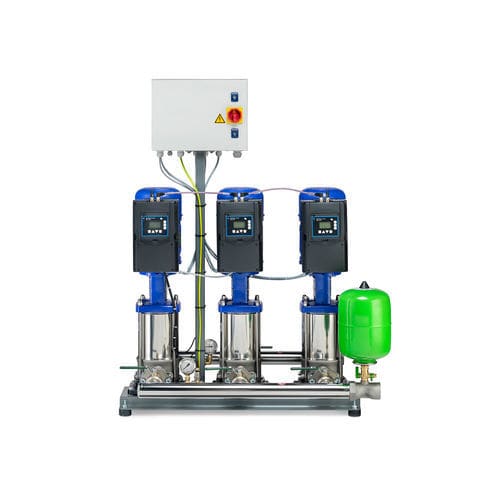

Electric pressure booster pump unit ZPV III-2-5

electric pressure booster pump unit
electric pressure booster pump unit
Add to favorites
Compare this product


Characteristics

Motor type
electric
Flow

3.25 m³/h
(114.77267 ft³/h)

Description

Fully automatic pressure boosting system Speed controlled Base plate version Membrane pressure vessel approved for drinking water on the pressure side as a control vessel, flow through according to DIN 4807-5, with stopcock and drainage valve 3 vertical high-pressure pumps with speed control Reliable operation due to hydraulic components made of stainless steel / brass Check valve for each pump Pressure gauge for pressure indication Electronic dry run protection Pressure sensor on both sides Vibration damping Electric motor, protection class IP55, efficiency class IE5 according to IEC 60034-30 Error message contact per pump Application Pressure increase Pumping of drinking water, process water, cooling water & liquids that do not chemically or mechanically attack the materials Scope of delivery Pumps with control Expansion tank Base plate for safe installation Discharge side gate valve per pump Suction side gate valve per pump Suction and pressure side collecting pipe made of stainless steel
