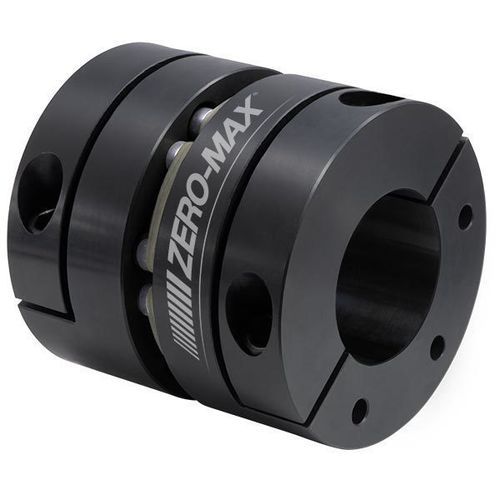

Disc coupling 8A-C-C/12A-C-C
compactwith boresteel

Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel - image - 2
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel - image - 3
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel - image - 4
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel - image - 5
Disc coupling - 8A-C-C/12A-C-C - ZERO-MAX Europe - compact / with bore / steel - image - 6
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
disc
Construction
compact, with bore, steel
Product applications
transmission, for shafts, horizontal operation, for the packaging industry, for test benches, for marine applications, turbine, for milling spindle, blower, for medical devices, for vehicles, for heavy loads, for mixers, for machine tools, industrial, for the food industry, for coordinate measuring machines, for mechanical power transmission, for the aerospace industry, for cleaners, for robotics, motor, for servo motors, for blowers, gearbox, for machines, for conveyor, for chemical applications, for robots, for lathes, pharmaceutical products, for spindles, for the textile industry, for excavators, breaker, for printing machines, turntable, for paper machines
Performance
high-torque, backlash-free, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, custom-made, compensating, with high torsional flexibility, variable-speed, dry, high-position
Torque

Max.: 7,345 Nm
(5,417.393986 ft.lb)

Min.: 42 Nm
(30.97761 ft.lb)

Rotational speed

Max.: 20,790 rpm
(130,627.4225 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Single Flex 8A-C-C/12A-C-C of the backlash-free Composite Disc Coupling offers a very high torque capacity in a compact product design. High torsional stiffness combined with good damping properties enable use in demanding applications. The clamping hub design offers easy installation and impresses with its optimal clamping force. One-piece clamping hubs and two-piece (split) clamping hubs for larger bore sizes are available as standard. Steel clamping hubs in a very compact design Very high torsional stiffness High power density Electrically insulating and highly chemically resistant High operating speeds possible Ideal for critical applications (reversing/indexing operation) Temperature range from -57 °C to 121 °C Nominal torque range from 42 to 7345 Nm Bore range from ø12 mm to ø130 mm Maintenance-free operation with easy installation and replacement
