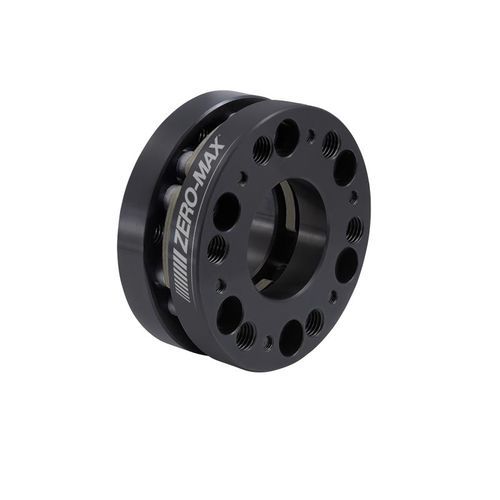

Disc coupling 8A-FM-FM / 12A-FM-FM
compactsteelfor the textile industry

Disc coupling - 8A-FM-FM / 12A-FM-FM - ZERO-MAX Europe - compact / steel / for the textile industry
Disc coupling - 8A-FM-FM / 12A-FM-FM - ZERO-MAX Europe - compact / steel / for the textile industry
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
disc
Construction
compact, steel
Product applications
for the textile industry, transmission, for shafts, turbine, industrial, for mechanical power transmission, motor, for the packaging industry, for heavy loads, horizontal operation, for servo motors, for blowers, for vehicles, gearbox, for machines, for medical devices, for coordinate measuring machines, flange, for paper machines, for spindles, for machine tools, for marine applications, for conveyor, for test benches, for chemical applications, for the food industry, for milling spindle, for lathes, for the aerospace industry, for mixers, for printing machines, for robots, for excavators, for cleaners, pharmaceutical products, blower, for robotics, turntable, breaker
Performance
backlash-free, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, custom-made, compensating, with high torsional flexibility, variable-speed, dry, high-position
Installation system
flange
Torque

Max.: 7,345 Nm
(5,417.393986 ft.lb)

Min.: 42 Nm
(30.97761 ft.lb)

Rotational speed

Max.: 20,790 rpm
(130,627.4225 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Single Flex 8A-FM-FM/12A-FM-FM version of the backlash-free Composite Disc Coupling has flange hubs on both sides for direct integration into existing systems. The extremely compact design offers very high torsional stiffness and easy installation, making it an ideal solution for limited installation spaces. The innovative design of the spring package guarantees very high torsional stiffness and a long service life in continuous operation. The flange hub design is the ideal choice, especially for applications with demanding requirements in terms of operating speed, load changes (reversing operation) or repeat accuracy. Flange hubs for direct integration Very high torsional stiffness High power density Electrically insulating and high chemical resistance High operating speed possible Ideal for critical applications (reversing/indexing operation) Temperature range from -57 °C to 121 °C Maintenance-free operation with easy installation and replacement
