Disc coupling 8A-C-AM / 12A-C-AM
for the packaging industryfor mechanical power transmissiontransmission

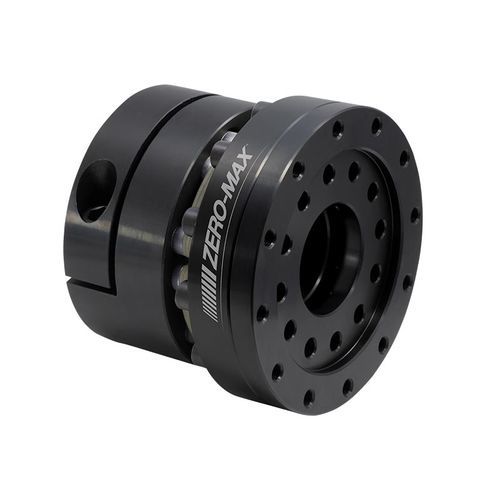

Disc coupling - 8A-C-AM / 12A-C-AM - ZERO-MAX Europe - for the packaging industry / for mechanical power transmission / transmission
Disc coupling - 8A-C-AM / 12A-C-AM - ZERO-MAX Europe - for the packaging industry / for mechanical power transmission / transmission
Disc coupling - 8A-C-AM / 12A-C-AM - ZERO-MAX Europe - for the packaging industry / for mechanical power transmission / transmission - image - 2
Disc coupling - 8A-C-AM / 12A-C-AM - ZERO-MAX Europe - for the packaging industry / for mechanical power transmission / transmission - image - 3
Disc coupling - 8A-C-AM / 12A-C-AM - ZERO-MAX Europe - for the packaging industry / for mechanical power transmission / transmission - image - 4
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
disc
Product applications
for the packaging industry, for mechanical power transmission, transmission, for shafts, industrial, motor, breaker, for servo motors, for test benches, for marine applications, gearbox, for machines, for chemical applications, for spindles, for the food industry, for medical devices, for robotics, for machine tools, for milling spindle, for the aerospace industry, horizontal operation, for the textile industry, for lathes, for heavy loads, turbine, for coordinate measuring machines, for blowers, pharmaceutical products, for excavators, for paper machines, blower, for cleaners, for printing machines, for conveyor, for robots, turntable, for vehicles, for mixers
Construction
compact, with bore, steel
Performance
high-torque, backlash-free, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, custom-made, compensating, with high torsional flexibility, variable-speed, dry, high-position
Torque

Max.: 4,915 Nm
(3,625.117964 ft.lb)

Min.: 42 Nm
(30.97761 ft.lb)

Rotational speed

Max.: 17,903 rpm
(112,487.8666 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Single Flex 8A-C-AM/12A-C-AM version of the backlash-free Composite Disc Coupling is equipped with a clamping hub and an adapter plate as standard. The adapter plate connection in accordance with ISO 9409-1 enables direct mounting on gearboxes and transducers. The space-optimized design benefits from very high torsional stiffness while remaining compatible with common mounting standards. Compatibility with ISO 9409-1 standardized gearboxes, transducers, and much more Very high torsional stiffness Electrically insulating and highly chemically resistant High operating speeds possible Ideal for critical applications (reversing/indexing operation) Bore range from ø12 mm to ø115 mm Maintenance-free operation with easy installation and replacement
