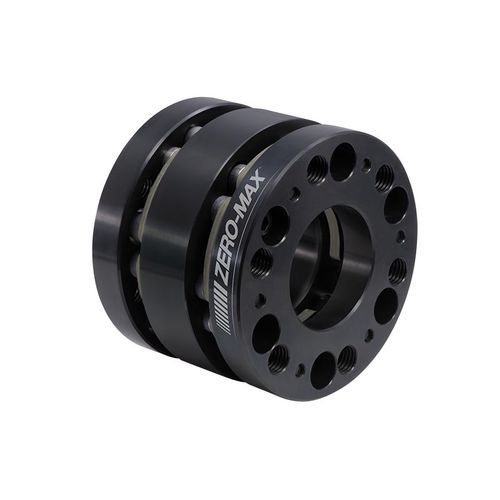

Disc coupling 8P-FM-FM / 12P-FM-FMcompactdoublewith bore
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Construction
- compact, double, with bore, steel
- Product applications
- industrial, transmission, for the food industry, for test benches, for cleaners, for mixers, for robotics, pharmaceutical products, for shafts, for robots, for the aerospace industry, turbine, blower, for vehicles, for mechanical power transmission, horizontal operation, for medical devices, motor, for servo motors, for conveyor, for the packaging industry, breaker, for blowers, for chemical applications, flange, gearbox, for machines, for spindles, for machine tools, for excavators, for heavy loads, for milling spindle, for the textile industry, for paper machines, for marine applications, for coordinate measuring machines, for printing machines, turntable, for lathes
- Performance
- high-torque, backlash-free, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
- Other characteristics
- torque, misalignment correction, custom-made, compensating, with high torsional flexibility, variable-speed, dry, high-position
- Torque
Max.: 7,345 Nm
(5,417.393986 ft.lb)Min.: 42 Nm
(30.97761 ft.lb)- Rotational speed
Max.: 20,790 rpm
(130,627.4225 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The Double Flex 8P-FM-FM/12P-FM-FM version of the backlash-free Composite Disc Coupling has flange hubs on both sides for direct integration into existing systems. The extremely compact design offers high torsional stiffness and easy installation, making it an ideal solution for limited installation spaces. High power density enables the transmission of very high torques with low restoring forces, while still offering high misalignment compensation properties. The flange hub design is an ideal choice, especially for applications with demanding requirements in terms of operating speed, load changes (reversing operation), or repeatability.
Flange hubs for direct integration
High torsional stiffness
Offers high misalignment compensation
High power density
Electrically insulating and highly chemically resistant
High operating speeds possible
Ideal for critical applications (reversing/indexing operation)
Temperature range from -57 °C to 121 °C
Maintenance-free operation with easy installation and replacement
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogsOther ZERO-MAX Europe products
