Disc coupling 8P-C-C/12P-C-C
transmissionfor shaftsfor milling spindle

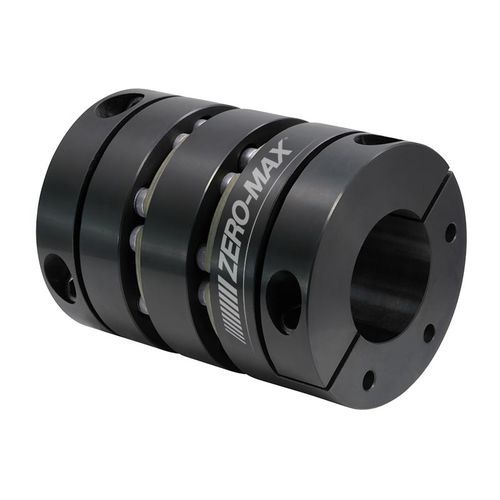

Disc coupling - 8P-C-C/12P-C-C - ZERO-MAX Europe - transmission / for shafts / for milling spindle
Disc coupling - 8P-C-C/12P-C-C - ZERO-MAX Europe - transmission / for shafts / for milling spindle
Disc coupling - 8P-C-C/12P-C-C - ZERO-MAX Europe - transmission / for shafts / for milling spindle - image - 2
Disc coupling - 8P-C-C/12P-C-C - ZERO-MAX Europe - transmission / for shafts / for milling spindle - image - 3
Disc coupling - 8P-C-C/12P-C-C - ZERO-MAX Europe - transmission / for shafts / for milling spindle - image - 4
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
disc
Product applications
transmission, for shafts, for milling spindle, for lathes, for marine applications, industrial, for mechanical power transmission, for cleaners, for chemical applications, for coordinate measuring machines, breaker, for vehicles, for conveyor, for heavy loads, for excavators, for blowers, motor, for servo motors, gearbox, for test benches, horizontal operation, for machines, for spindles, turntable, for machine tools, for paper machines, for mixers, for the packaging industry, for the food industry, for robots, for the aerospace industry, for medical devices, blower, turbine, for the textile industry, for printing machines, for robotics
Construction
compact, double, with bore, steel
Performance
high-torque, backlash-free, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, custom-made, compensating, with high torsional flexibility, variable-speed, dry, high-position
Torque

Max.: 7,345 Nm
(5,417.393986 ft.lb)

Min.: 42 Nm
(30.97761 ft.lb)

Rotational speed

Max.: 20,790 rpm
(130,627.4225 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Double Flex 8P-C-C/12P-C-C of the backlash-free Composite Disc Coupling offers increased misalignment compensation and lower restoring forces compared to single flex couplings. High torsional stiffness combined with good damping properties enable use in demanding applications. The clamping hub design offers easy installation and impresses with its optimal clamping force. One-piece clamping hubs and two-piece (split) clamping hubs for larger bore sizes are available as standard. Steel clamping hubs in a very compact design Offers high misalignment compensation High torsional stiffness Electrically insulating and highly chemically resistant High operating speeds possible High power density Ideal for critical applications (reversing/indexing operation) Temperature range from -57 °C to 121 °C Bore range from ø12 mm to ø130 mm Maintenance-free operation with easy installation and replacement

Catalogs

No catalogs are available for this product.

See all of ZERO-MAX Europe‘s catalogs
