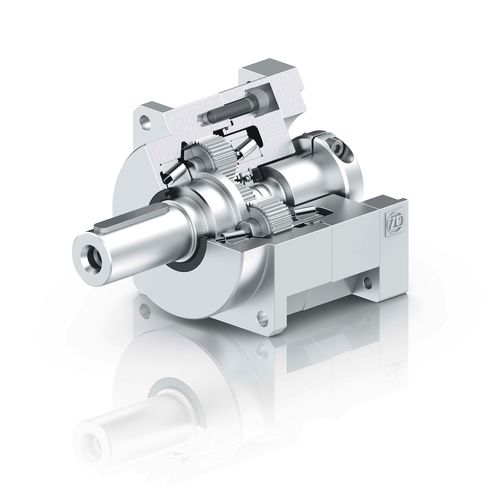

Planetary gearbox Servoplan
coaxial200 - 500 Nm100 - 200 Nm

planetary gearbox
planetary gearbox
planetary gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 50 - 100 Nm, 20 - 50 Nm, 2 - 5 kNm
Performance
high-precision, maintenance-free
Applications
for servo motors
Other characteristics
compact
Rotational speed

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Min.: 800 rpm
(5,026.55 rad.min-1)

Description

Planetary Gearboxes for Servomotors Servo-controlled transmissions can be applied in multiple contexts. One- and two-speed servo drives with ZF Servoplan transmissions are applied wherever highly dynamic and exact positioning is required. Target output torques of 25 - 3,000 Nm are possible with different model sizes. Planetary gear sets for servomotors are used for packaging technology, in forming technology, as well as generally for machines and facilities. Advantages - Highest possible axial loads - High radial forces and an extreme tilt resistance - High positional accuracy (using ground and highly accurate gears) - High torsional rigidity - Low running noise - Special galvanic surface - High acceleration torque permissible - Low gearbox temperatures and minimum power loss - Backlash-free - Compact design - Robust shaft seals ensure a permanent and safe sealing - Maintenance-free thanks to lifetime lubrication
