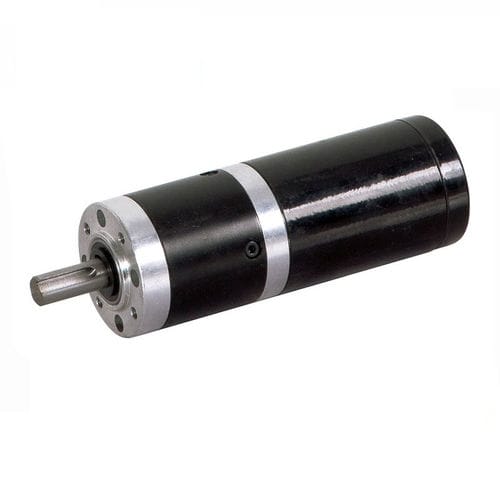

Magnetic gear-motor 45JX100K/45ZYN68
DCpermanent magnetplanetary

magnetic gear-motor
magnetic gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
DC, permanent magnet
Type
planetary, magnetic
Shaft orientation
coaxial
Power
10 W...50 W, 0 W...10 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 5 - 10 Nm
Product applications
industrial, for automation, with encoder
Other characteristics
compact, custom, IP68, with encoder
Gear ratio

Min.: 3.71 unit

Max.: 369 unit

Description

Characteristics Motor type : Rare earth magnet DC motor Gearbox type : Planetary Diameter : Gearbox: 45mm; DC motor:45mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:3.71 ~1:369 No load current : 0.18A; 0.25A; 0.30A Nominal current : 0.5A; 1.20A; 2.0A No load speed : 2000rpm; 3000rpm; 4000rpm Nominal speed : 1600rpm; 2400rpm; 3200rpm Permissible load range : 1.0N.m ~ 10.0N.m for S1 duty cycle Nominal power : 7W; 16W; 30W IP rating : up to IP68 Description Compact design rare earth magnet DC planetary gear motor The 45ZYN68 model of rare earth magnet DC motor is equipped with a 45mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
