Motor type - Brush commutated DC motor
Gearbox type - Planetary
Diameter - Gearbox: 32mm; DC motor:31mm
Nominal voltage - 12V/24V DC or customized
Gear ratio - 1:3.7 ~1:354
No load current - 120mA; 150mA
Nominal current - 660mA; 800mA
No load speed - 5000rpm; 6000rpm
Nominal speed - 3500rpm; 3600rpm
Permissible load range 0.3N.m ~ 3.0N.m for S1 duty cycle
Nominal power - 5.5W; 8.3W
IP rating up to IP68

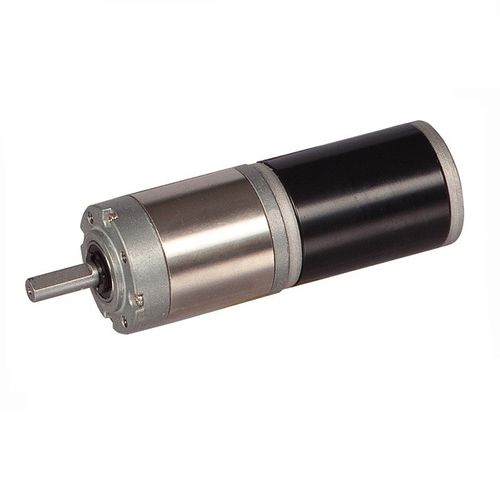

Micro DC planetary gear motor
The 31ZY46 model of brushed DC motor is equipped with a 32mm planetary gearbox
Options
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Special shaft material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds ranging up to 10,000 RPM
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
