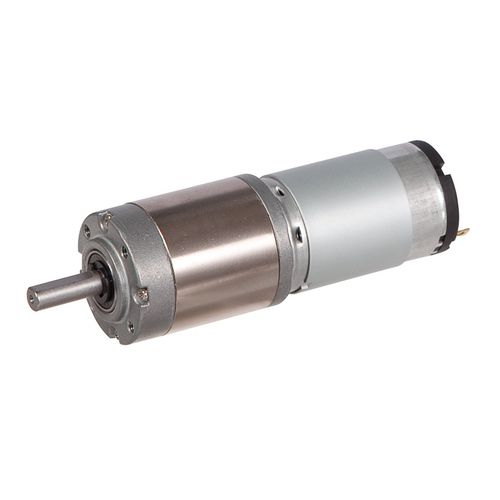

Planetary micro geared motor 32JXE30K/28ZY47P(1)
DCpermanent magnetcoaxial

planetary micro geared motor
planetary micro geared motor
Add to favorites
Compare this product


Characteristics

Motor type
DC, permanent magnet
Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
0 W...10 W
Voltage
12 V, 24 V
Torque
0.2 - 0.5 Nm, 0.5 - 1 Nm, 1 - 5 Nm
Product applications
for automation, with encoder
Gear ratio

Min.: 3.7 unit

Max.: 596 unit

Description

Characteristics Motor type : Brush commutated DC motor with shielding cover Gearbox type : Planetary Diameter : Gearbox: 32mm; DC motor:28mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:3.7 ~1:596 No load current : 150mA; 85mA Nominal current : 530mA; 250mA No load speed : 6500rpm Nominal speed : 5290rpm; 5250rpm Permissible load range : 0.3N.m ~ 3.0N.m for S1 duty cycle Nominal power : 2.8W; 8W IP rating : up to IP68 Description Micro DC planetary gear motor The 28ZY47P model of brushed DC motor is equipped with a 32mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
