Motor type
Brush commutated DC motor
Gearbox type
Planetary
Diameter
Gearbox: 42mm; DC motor:42mm
Nominal voltage
12V/24V DC or customized
Gear ratio
1:3.71 ~1:427
No load current
0.15A; 0.2A
Nominal current
0.75A; 1.2A
No load speed
3000rpm; 4000rpm
Nominal speed
2500rpm; 3500rpm
Permissible load range
1.0N.m ~ 10.0N.m for S1 duty cycle
Nominal power
11.5W; 20W
IP rating up to IP68

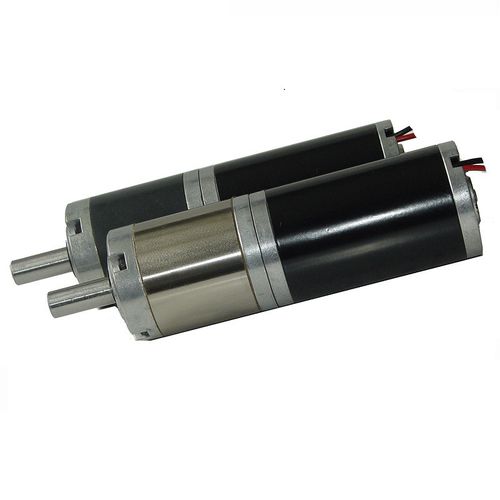

Micro DC planetary gear motor
The 42ZY75 model of brushed DC motor is equipped with a 42mm planetary gearbox
Options
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Special shaft material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds ranging up to 10,000 RPM
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
