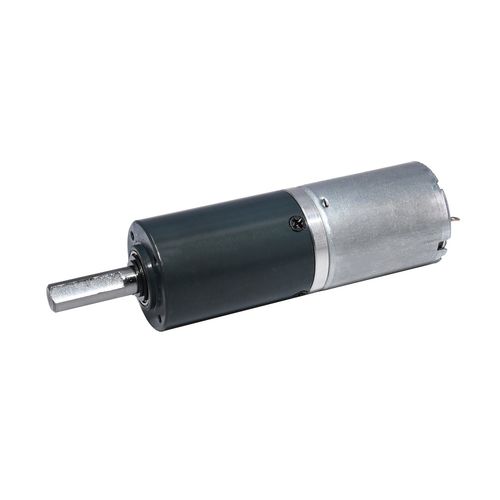

24JNB20K24ZY30 Curtain, Roller Shutter Tubular Integrated Planetary Gearbox DC Motor
Model: 24JNB20K/24ZY30
Voltage: 6 ~ 400V DC
Rated torque up to 2.0N.m for continuous running
Ball bearing or oil bearing
CE, UKCA, EMC, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; cable connector
Customized shaft & flange dimensions and technical specs. are available upon requested.
Typical applications: Automatic door & window; roller shutter; curtain; robotsCharacteristics
Motor type : Brush commutated DC motor
Gearbox type : Planetary
Diameter : Gearbox: 24mm; DC motor:24mm
Nominal voltage : 12V/24V DC or customized
Gear ratio : 1:3.7 ~1:2000
No load current : 60mA; 70mA; 100mA
Description
Micro DC planetary gear motor
The 24ZY30 model of brushed DC motor is equipped with a 24mm planetary gearbox
Options
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Special shaft material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds ranging up to 10,000 RPM
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
