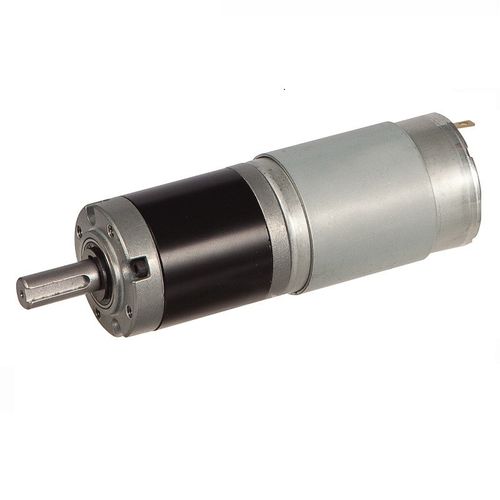

DC gear-motor 42JXE100K/42ZY68P(1)

permanent magnetbrushedplanetary

Motor type Brush commutated DC motor Gearbox type Planetary Diameter Gearbox: 42mm; DC motor:42mm Nominal voltage 12V/24V DC or customized No load current 0.35A; 0.45A; 0.50A Nominal current 1.2A; 2.1A; 3.1A; No load speed 3000rpm; 4000rpm; 5000rpm Nominal speed 2250rpm; 3000rpm; 3750rpm Permissible load range 1.0N.m ~ 10.0N.m for S1 duty cycle Nominal power 16W; 27W; 45W IP rating up to IP68 Micro DC planetary gear motor The 42ZY68P model of brushed DC motor is equipped with a 42mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position
