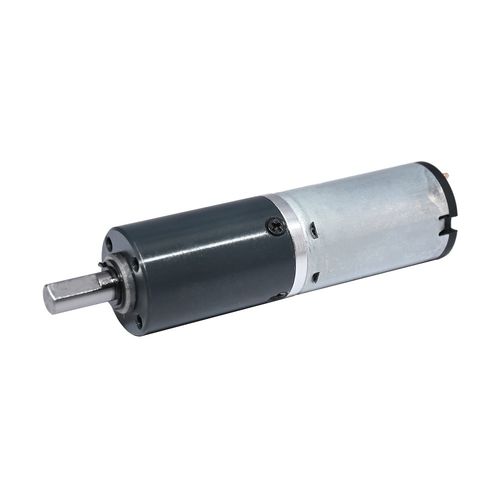

22mm Diameter 12V, 24V Mini DC Planetary Gear Motor
Model: 22JNB15K/22ZY38G
Voltage: 6 ~ 24V DC
Rated torque up to 1.5N.m for continuous running
Oil bearing or ball bearing optional
Gearbox flange mounting screws can be optionally to be 3 or 4
Optional components: encoder, brake, connector
CE, UKCA, Reach and RoHS approval
Customized shaft & flange material and dimensions, and technical specifications are available upon requested.Characteristics
Motor type : Brush commutated DC motor
Gearbox type : Planetary
Diameter : Gearbox: 22mm; DC motor:22mm
Nominal voltage : 12V/24V DC or customized
Gear ratio : 1:3.7 ~1:576
Description
Micro DC planetary gear motor
The 22ZY38B model of brushed DC motor is equipped with a 22mm planetary gearbox
Options
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Custom design; OEM products available
Features
Ball bearing at output shaft
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds ranging up to 10,000 RPM
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
