DC gear-motor P/N 523900
permanent magnetwormspur

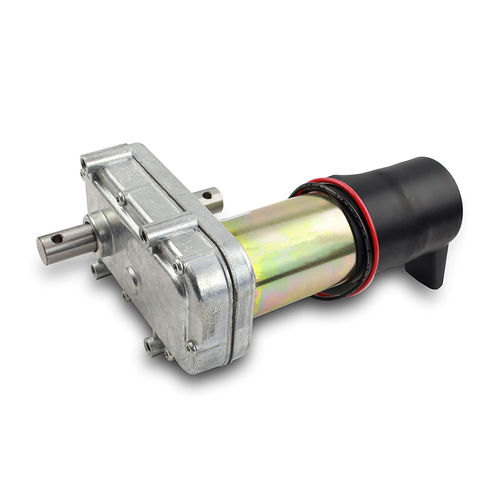

DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur
DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur
DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur - image - 2
DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur - image - 3
DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur - image - 4
DC gear-motor - P/N 523900 - Zhejiang Dongzheng Motor Co., Ltd. - permanent magnet / worm / spur - image - 5
Add to favorites
Compare this product
Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC, permanent magnet
Type
worm, spur
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
100 W...500 W, 50 W...100 W
Voltage
12 V
Torque
20 - 50 Nm, 50 - 100 Nm
Performance
high-torque
Product applications
for automation, for actuators
Other characteristics
maintenance-free
Gear ratio

162.7 unit, 415 unit

Description

64ZY-160JB PARALLEL SHAFT GEAR MOTORS TYPICAL SPECS.: 1)Voltage 12V DC 400 In-Lbs @10 Amps @ 11.5RPM 850 In-Lbs @ 19 Amps @ 8.5RPM With A Power-Off Brake Gearbox Ratio 162.7/1 ( Other Ratios Available Upon Request ) Part # 523900 2)Voltage 12V DC 400 In-Lbs @7.5 Amps @ 8.5RPM With A Power-Off Brake Gearbox Ratio 415/1 ( Other Ratios Available Upon Request ) Replaces Power Gear motors: 523900, 521976W, 521976, 523983, 524327, 524097, 520819, 522967, 523036, 523931, 524246, 523498, 523432, 523143, 523529, 524094, 52441
