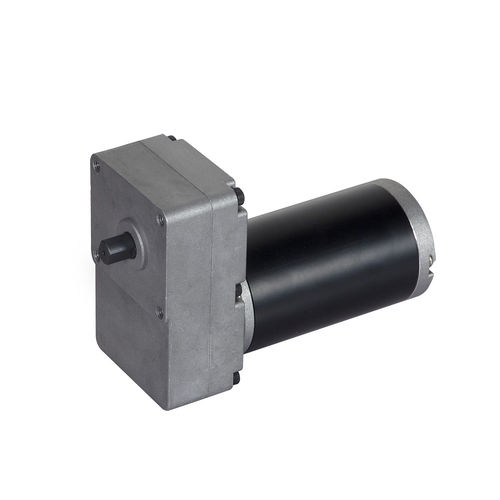

DC gear-motor LC656216permanent magnetbrushedspur
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet, brushed
- Type
- spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 50 W...100 W
- Voltage
- 12 V
- Torque
- 5 - 10 Nm, 10 - 20 Nm
- Number of stages
- three-stage
- Performance
- high-torque, high-efficiency, maintenance-free, for heavy loads
- Product applications
- for vehicles
- Certifications
- CE, OHSAS 18001, ISO 9001, ISO 14001, ISO/TS 16949
- Other characteristics
- compact, custom-made, maintenance-free, with encoder
- Gear ratio
62.8 unit
- Operating temperature
25 °C
(77 °F)Min.: -40 °C
(-40 °F)Max.: 65 °C
(149 °F)
Description
ELECTRIC JACK MOTOR, 26" POWER STANCE LEVELING JACK GEAR MOTOR LC656216
Model: DZ62ZY-82-146
Voltage 12V DC
No-load Current 1.5A
No-load Speed 78rpm
Rated Current 9.0A
Rated Speed 64rpm
Rated Torque 9.0N.m
Max. Service Current 30A
Max. Service Torque 30N.m
Gear Ratio 62.8 : 1 ( 3 Stages )
UL, CE, Reach and RoHS approval
With 1 Channel 2ppr Magnetic Encoder
Customized shaft dimensions and technical specifications are available upon requested
Replacement Stabilizer Motor and Gearbox for Lippert Components Ground Control TT Leveling System
Item # LC656216
