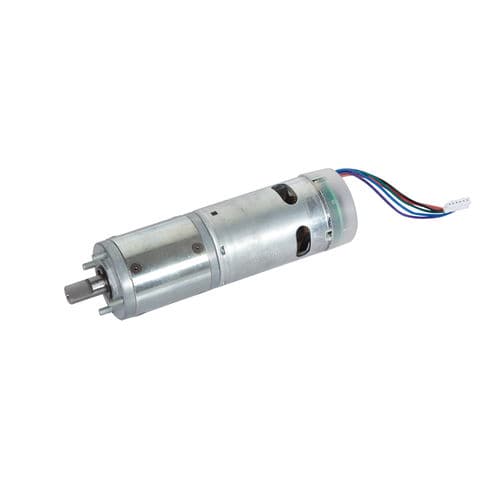

DC gear-motor 236575, 287298permanent magnetplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W, 50 W...100 W
- Voltage
- 12 V
- Torque
- 10 - 20 Nm, 20 - 50 Nm
- Performance
- high-torque, high-efficiency, maintenance-free, for heavy loads, low-backlash
- Product applications
- for automation, for vehicles, with encoder
- Certifications
- CE, OHSAS 18001, ISO 9001, ISO 14001
- Other characteristics
- compact, maintenance-free, with encoder, IP55, low-speed
- Gear ratio
Min.: 300 unit
Max.: 500 unit
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 65 °C
(149 °F)
Description
Typical application: RV, Recreational Vehicle, Electric Trailer, Caravan Mover
P/N: 236575, 287298, 364262
Cable Slide Motor ( Gear ratio 294:1 or 504:1 )
In Wall Motor
Slim Rack Motor (with a Brake )
With a right angle gearbox available upon request
Long & reliable life
CE, UL, RoHS & CCC
100% Exported
Typical technical specs.：
RV In-Wall Slide Out Motor, Part # 287298
Voltage 12V DC
No-load Speed 15.3rpm
No-load Current <1.3A
Rated Speed 12rpm
Gear Ratio 500:1
Encoder 10 Pole 5ppr
RV In Wall Slideout Motor, Part # 236575
Voltage 12V DC
No-load Speed 26rpm
No-load Current <1.3A
Rated Speed 22rpm
Gear Ratio 294:1
Encoder 10 Pole 5ppr
RV In Wall Slideout Right Angle Bevel Gear Motor
Motor technical data:
Voltage: 12V
No-load Current <1.2A
No-load speed 6800rpm
Rated Current 3.0A
Rated speed 5780rpm
Gear motor technical data:
Rtaed speed 16rpm
Rated torque 11N.m
Gear Ratio 364:1
CCW rotation when viewed from face mount
