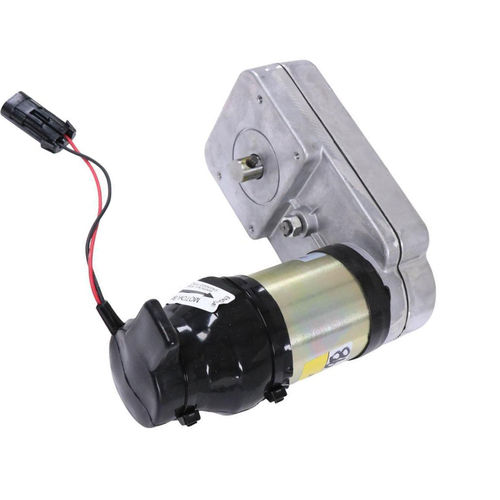

DC gear-motor LC386198
gear trainparallel-shaftsolid-shaft

DC gear-motor - LC386198 - Zhejiang Dongzheng Motor Co., Ltd. - gear train / parallel-shaft / solid-shaft
DC gear-motor - LC386198 - Zhejiang Dongzheng Motor Co., Ltd. - gear train / parallel-shaft / solid-shaft
DC gear-motor - LC386198 - Zhejiang Dongzheng Motor Co., Ltd. - gear train / parallel-shaft / solid-shaft - image - 2
Add to favorites
Compare this product
Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC
Type
gear train
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Voltage
12 V
Torque
20 - 50 Nm, 50 - 100 Nm
Performance
high-speed
Product applications
for vehicles
Gear ratio

69.74 unit

Description

Replacement Motor for Electric Leveling Jack System - Left Item # LC386198 ( DZ84ZYC03 ) Voltage 12V DC 400 in-lbs @ 28Amps and 35rpm 725 in-lbs @ 46Amps and 25rpm Gear Ratio 69.74: 1 Replaces the left side electric leveling jack motor for your electric leveling system (383548, 383768, 383772, 383778, or 383796). Replacement Motor for Electric Leveling Jack System - Right Item # LC89CJ ( DZ84ZYC03 ) Replaces the right-hand side electric leveling jack motor for your electric leveling system (383548, 383768, 383772, 383778, or 383796). UL, CE, Reach and RoHS approval Optional components: magnetic/optical encoder; brake; connector Customized shaft dimensions and technical specifications are available upon requested Typical Applications: High-Speed Power Stabilizer Jack, RV Leveling System, Trailer Leveling System
