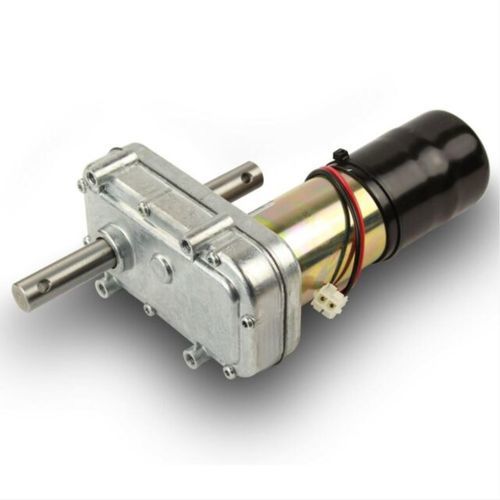

DC gear-motor D-300
12 Vwith brake

DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake
DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake
DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake - image - 2
DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake - image - 3
DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake - image - 4
DC gear-motor - D-300 - Zhejiang Dongzheng Motor Co., Ltd. - 12 V / with brake - image - 5
Add to favorites
Compare this product
Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC
Voltage
12 V
Other characteristics
with brake
Gear ratio

162.7 unit

Rotational speed

7 rpm, 11.5 rpm
(43.9823 rad.min-1, 72.2566 rad.min-1)

Description

Characteristics - P/N 138449 63ZY-160JB D-300 RV Slide-Out Motor (3/4 inches Drive) TYPICAL SPECS.: - Voltage: 12V DC - 400 In-Lbs @10 Amps @ 11.5RPM - 850 In-Lbs @ 17 Amps @ 7.0RPM - With A Power-Off Brake - Gearbox Ratio: 162.7/1 (Other Ratios Available Upon Request) - 1pc per EPE carton, carton size 314*163*195mm, 5.0KGS/pc - Part # LC138449 Technical Specifications - Product Name: P/N 138449 D-300 RV Slide-Out Motor (3/4 inches Drive) - Model: 63ZY-160JB - Voltage: 12V DC - Torque: 400 In-Lbs @10 Amps @ 11.5RPM; 850 In-Lbs @ 17 Amps @ 7.0RPM - Gearbox Ratio: 162.7/1 (Other Ratios Available Upon Request) - Power-Off Brake: Yes - Packaging: 1pc per EPE carton, carton size 314*163*195mm, 5.0KGS/pc - Part Number: LC138449
